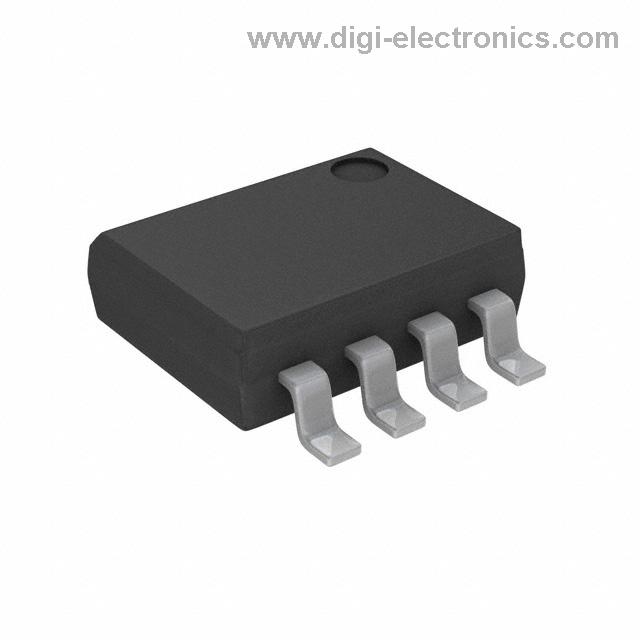

Product overview of the AT25SF161B-SSHB-T
The AT25SF161B-SSHB-T, engineered by Renesas Electronics, is a 16-Mbit (2-MB) NOR Flash memory tailored for space-constrained embedded platforms demanding high data throughput and robust operation. Built around a Serial Peripheral Interface (SPI), it supports standard as well as Dual and Quad I/O modes, offering designers scalable bandwidth that adapts to varying application bandwidth and pin-count needs. The underlying mechanism leverages NOR Flash architecture, which inherently delivers fast random access and high endurance, distinguishing it from NAND-based alternatives in code storage scenarios.
A key technical asset of this device is its Execute-In-Place (XiP) capability. XiP enables direct code fetch and execution from the Flash array, bypassing the need to shadow code into RAM. This direct-execute paradigm significantly reduces system boot times, optimizes software upgrade cycles, and supports minimalist RAM configurations in microcontroller-powered solutions. In practice, optimizing PCB layouts to minimize SPI trace length and noise is fundamental, as Quad I/O at up to 108 MHz clock frequencies can otherwise face signal integrity challenges that compromise data validity at high throughput.
Multiple read protocols—including Standard, Fast, Dual, and Quad—equip the AT25SF161B-SSHB-T to adapt to system constraints. Dual and Quad I/O modes dramatically increase throughput by transmitting multiple bits per clock, supporting firmware-over-the-air (FOTA) upgrades or real-time code streaming for demanding use cases. Erase and program algorithms, featuring sector and block-level granularity, allow fine-grained updating and wear-leveling, extending service life in systems with frequent write operations. Strict attention to voltage timing margins during in-system programming is required to achieve specified endurance, typically 100,000 write-erase cycles.
Within the broader system architecture, the compact, small-outline package minimizes board space while simplifying integration in dense designs such as IoT endpoints, wearable devices, industrial controls, and wireless modules. System designers often leverage the flexible protection schemes—such as block locking—to safeguard critical code sections during firmware updates or in hostile environments. This functionality not only safeguards system integrity but also streamlines certification compliance processes for connected applications.
Experience demonstrates that the reliability and deterministic performance of NOR Flash in fixed-content storage aligns with the real-time requirements of control firmware and safety-related routines. By enabling direct execution and supporting high bus frequencies, the AT25SF161B-SSHB-T alleviates bottlenecks typically associated with low-cost embedded architectures, paving the way for rapid wake-from-sleep and secure remote updates without jeopardizing data retention or system stability.
In conclusion, this device’s combination of dense NOR cell layout, high-speed SPI interfaces, multi-protocol support, and advanced security features generates significant value in the evolving landscape of embedded design. The architectural choices embedded within the AT25SF161B-SSHB-T position it as a proactive solution for teams prioritizing system responsiveness, code security, and BOM optimization in both established and emerging markets.
Package options and pinout details for AT25SF161B-SSHB-T
The AT25SF161B-SSHB-T is engineered for versatile design integration, with packaging options tailored to address diverse PCB layouts and manufacturing requirements. Renesas delivers this Serial Flash in four distinct formats, each supporting robust electrical and mechanical interfacing. The 8-lead SOIC, available in both 0.150" narrow and 0.208" wide profiles, remains a staple for through-hole and reflow mounting, balancing spatial efficiency against compatibility with legacy footprints. The 8-pad DFN, measuring 5 x 6 x 0.6 mm, offers significant reductions in z-height for applications where vertical clearance is restricted, such as low-profile consumer electronics. The 8-ball WLCSP, structured as a 3 x 2 x 3 grid array, substantially lowers the package surface area and promotes minimal parasitics, thereby enhancing signal integrity in high-speed environments. For highly customized or space-constrained systems, the die wafer format unlocks integration at the substrate or bare-die level, suitable for advanced multi-chip modules or system-in-package architectures.
Interface pinout remains invariant across all packaging, streamlining board-level migration and minimizing requalification efforts. The essential SPI signals—Chip Select (CS), Serial Clock (SCK), Serial Input (SI), Serial Output (SO)—are complemented by Write Protect (WP) and Hold pins. Under standard operation, WP and HOLD facilitate device safeguards and synchronous access interruption. Notably, during Quad I/O transactions, these dual-function pins dynamically serve as expanded data lines, adapting hardware resources for streamlined protocol efficiency. This underlines a pin multiplexing strategy that grants both backward compatibility and maximal throughput, a nuanced design dimension favorable for space and signal budget optimization.
Deployment scenarios span legacy computing modules leveraging SOIC footprints to next-generation mobile and IoT platforms demanding WLCSP or DFN integration. High-volume production frequently exploits the DFN for automatic optical inspection compatibility, while WLCSP excels in micro-assembly lines facing pad-to-pad pitch limits below 0.5 mm. Experience demonstrates that careful pad design and controlled reflow profiles are critical to ensuring yield, especially for CSP and DFN variants. In several production runs, uniform pin assignment has accelerated layout conversion between prototypes, reducing development time and risk.
The engineering philosophy underlying Renesas’s packaging strategy extends beyond compatibility: it emphasizes scalable manufacturability and system-level flexibility. The periodical migration between package types lies not solely in physical constraints but also in assembly cost structure, test coverage, and field reliability. Proper leveraging of configurable I/O pins significantly benefits firmware update speeds and access latency, especially when Quad SPI is utilized in firmware storage or secure boot environments.
Careful consideration of these package and pinout attributes empowers design teams to optimize assembly processes, achieve tight form-factor targets, and build redundancy into interface architectures. The AT25SF161B-SSHB-T’s adaptability, grounded by its stable pin mapping and multi-mode I/O, serves as a model for scalable serial memory deployment across the embedded spectrum.
Internal architecture and memory organization of AT25SF161B-SSHB-T
The AT25SF161B-SSHB-T implements a uniform array architecture, facilitating optimal spatial organization of its 16 Mbit memory. Internally, this device features multi-level erase granularity, supporting 4 KB, 32 KB, 64 KB block erase operations in addition to complete chip erasure. The partitioning of memory into discrete blocks allows targeted management of firmware, configuration settings, and dynamic user data, with each block independently addressable. This design directly benefits embedded system development, as it permits selective updates to critical code sections without impacting adjacent data regions, reducing unnecessary write/erase cycles and extending flash endurance.
Granularity of erase sizes is an instrumental feature for practical flash management. Fine-grained 4 KB erase operations minimize data loss during partial updates, such as over-the-air firmware revisions or adaptive bootloader modifications. The larger 32 KB and 64 KB regions serve bulk data operations, useful in system reconfiguration or mass parameter reinitialization. Leveraging full-chip erase is valuable during device provisioning or end-of-life processing, wherein full reset guarantees data integrity and clean-state compliance. The underlying block abstraction simplifies wear-leveling algorithms and reduces total device stress when implementing robust update schemes.
Address mapping merits close attention in system integration. With each major block corresponding to a 4 Mbit segment and addressable via lines A23 through A0, the architecture streamlines host interface design, especially when interfacing MCUs equipped with broader address buses. Unused higher address bits remain inert, eliminating the need for additional address translation logic or masking procedures. Experienced engineers recognize this as a key advantage—reducing complexity in board-level routing and firmware address assignment while ensuring deterministic read/write operations.
Reliability and performance are closely coupled in this architecture. Selective block operations provide rapid sector transitions and minimize latency in time-sensitive applications. By architecting data structures to align with physical block boundaries, system designers can balance throughput and retention, which is critical in wear-constrained environments like automotive or industrial controls. Furthermore, the uniformity of block sizes ensures predictable performance scaling across different code and data workloads.
Strategically, the AT25SF161B-SSHB-T’s internal organization underpins scalable, resilient memory ecosystems in embedded projects. Embracing its erase granularity and aligned block mapping yields tangible improvements in both data safety and maintenance operations, particularly where frequent partial updates and controlled firmware cycling are paramount. Selecting erase strategies informed by access patterns and update frequencies leads to quantifiable gains in endurance and device lifecycle.
Read, program, and erase operations of AT25SF161B-SSHB-T
The AT25SF161B-SSHB-T serial flash memory leverages a command-driven SPI interface, facilitating high-efficiency read, program, and erase processes essential for embedded system design. Structurally, its operation is built on flexible access modes and optimized management features suited to both code storage and data logging applications.
Read mechanisms are architected for adaptability and speed, featuring standard, dual, quad output, and quad I/O modes. The quad I/O mode unlocks the full bandwidth potential, reaching up to 108 MHz, and accommodates four bits per clock cycle, effectively reducing access latency and maximizing throughput for code fetch operations. Continuous read capability supports seamless sequential data access, minimizing protocol overhead, while burst-with-wrap modes optimize instruction fetching by ensuring alignment to cache-line boundaries—a significant advantage in microcontroller environments where instruction pipelines benefit from predictable memory access. Practical deployment in firmware shadowing and execute-in-place (XIP) scenarios demonstrates reliable performance, especially when system responsiveness is critical.
Programming operations are refined through byte-wise and page-level modes, with each page supporting up to 256 bytes written in a single transaction. The typical page programming cycle completes in approximately 0.4 milliseconds, but quad page program mode substantially boosts data writing rates for storage-rich applications. Internally, this multi-byte parallelism ensures efficient memory update cycles with minimized power and time footprints, a factor especially beneficial in wear-sensitive or energy-constrained systems. Page boundary handling and careful buffer management during programming allow deterministic operation, which is indispensable for bootloader upgrades or transactional data recording.
Erase processes provide granularity via selectable 4 KB sector erase, 32 KB or 64 KB block erase, and full-chip erase options. A complete chip erase executes in around 5.5 seconds, but sectorized erasing allows targeted updates without affecting unrelated data—a fundamental aspect for systems requiring frequent and partial data refresh. The embedded program/erase suspend feature enables interruption of lengthy erase cycles to service high-priority reads or writes, maintaining predictable real-time behavior without penalty to system integrity. Experience shows that judicious use of suspend/resume commands ensures uninterrupted code execution during critical states, such as boot or interrupt routines, while flash lifecycle management remains uncompromised.
In designing for robust operation, integration of these modes with error detection, sector layout planning, and scheduled erase management enhances reliability and endurance. Leveraging wrap and cache-aligned burst capabilities delivers both speed and consistency, suggesting a distinctive approach where the memory is treated not only as storage but also as a performance component in the overall system architecture. Such strategies solidify the AT25SF161B-SSHB-T as a cornerstone in applications that demand rigid timing guarantees and dynamic data maintenance, such as real-time sensor hubs, secure firmware deployment, and transactional logging systems.
Command set and data protection features in AT25SF161B-SSHB-T
The AT25SF161B-SSHB-T integrates a robust set of SPI-compatible commands, supporting granular control over data transactions and operational modes. Its opcode implementation aligns with industry standards, ensuring seamless interoperability with MCUs and SoCs that adhere to JEDEC protocols. The Serial Flash Discoverable Parameters (SFDP) protocol augments device configurability, allowing embedded systems to automatically detect and optimize timing, memory map orientation, and supported features with minimal software overhead. This intelligent interfacing streamlines the bootloader routines and firmware updates common in modern industrial and consumer electronics.
Memory protection strategies within this device operate at both macro and micro levels. Block-level protection partitions the array into logical regions, enabling selective write or erase protection that suits application profiles where certain firmware or configuration data must remain immutable over the product lifecycle. This is particularly critical when handling boot code, configuration tables, or calibration constants that, if altered, could compromise system stability. Additionally, the facility to define user-specific protected ranges at either array extremity introduces design flexibility—isolating reserved memory for failsafe or recovery routines without wasteful overprovisioning.
The physical Write Protect (WP) pin introduces a hardware-enforced perimeter against accidental or malicious write commands. Its integration into system boards can be further enhanced by routing through tamper or intrusion detection circuitry, allowing dynamic toggle based on environmental triggers. In practice, the WP pin's effectiveness outpaces software-only protections, especially in scenarios subject to EMI, voltage spikes, or fault injection attempts.
Status register manipulation is engineered with dual pathways: volatile writes deliver runtime adaptability—useful in debug or controlled manufacturing flows—while non-volatile writes cement settings meant for the device's field lifetime. Locking status bits, coupled with One-Time Programmable (OTP) configurations, facilitate root-of-trust architectures and enable secure firmware authentication methodologies. These mechanisms form the backbone of trusted computing environments, where only validated software images are permitted to execute.
Programming and erasure gating is addressed through both software instructions and hardware signals, offering multiple lines of defense against unintended operations. A layered enable/disable system can be precisely orchestrated in deployment scripts and runtime firmware, interfacing with host MPU/SOC security states. This segregation of access ensures that critical system memory cannot be casually overwritten during field updates or external diagnostics, maintaining uptime and operational reliability.
The hold signal feature affords real-time interruption of ongoing SPI transactions, a necessity in systems featuring bus sharing, high-priority interrupt handling, or multi-master arbitration. By halting command streams without protocol violation, designers can architect responsive, multitasking systems without compromising data integrity or incurring race conditions. This capability proves especially advantageous during in-circuit testing or secondary peripheral prioritization.
One emerging insight is the strategic value of holistic protection layering—combining hardware-enforced locks, programmable zones, and runtime control signals yields resilience against both accidental miswrites and deliberate security breaches. Engineers can leverage this suite to match specific threat models and operational contexts, achieving the right balance between accessibility and immutability without heavy firmware complexity. Practical deployment often involves predefining locked regions for system-critical code and using the volatile programmable space for calibration and diagnostics, optimizing both reliability and flexibility.
Security register and unique device ID in AT25SF161B-SSHB-T
AT25SF161B-SSHB-T integrates specialized mechanisms for embedded device identity management and security, leveraging both hardware-encoded and programmable elements. The incorporation of three independent 256-byte One-Time-Programmable (OTP) security registers establishes a secure, immutable storage layer well-suited for high-value secrets such as electronic serial numbers, cryptographic primitives, or system identity codes. Once individual pages are programmed, their lock functionality irrevocably seals data, enabling trust anchors necessary for secure firmware validation and device attestation. This persistent lock state provides robust resistance against both software and physical tampering, ensuring that critical authentication assets remain isolated throughout the product lifecycle.
The factory-embedded 64-bit device ID, distinct for each physical unit, serves as a foundational anti-cloning countermeasure and supports application scenarios involving secure boot enforcement, asset provenance, and supply chain integrity. This hardware-encoded identity streamlines device onboarding and granular access control, allowing back-end infrastructure to match hardware presence with digital certificates without risk of counterfeit infiltration. Traceability is further enhanced through dedicated Read ID and manufacturer ID commands, which facilitate rapid, automated inventory audits and in-field authenticity checks, minimizing operational overhead in fleet management and warranty provisioning.
Deployment experience indicates that judicious use of OTP registers permits layered credential storage. For instance, binding a device-specific cryptographic key in OTP at provisioning empowers distributed IoT systems to implement mutual authentication or end-to-end encryption with minimal firmware complexity. The irreversible locking mechanism mitigates credential exposure even in failure conditions or during firmware upgrades, strengthening post-deployment security. Rigorous supply chain management routines exploit the unique device ID for lifecycle tracking and remote asset decommissioning, particularly in regulated environments where device pedigree and audit trails are legally mandated.
From a design perspective, intrinsic hardware security features offer superior resilience compared to software-only approaches; exposure risk is sharply reduced by keeping authentication roots outside volatile memory or application-accessible storage. Integrating these capabilities directly into the flash subsystem streamlines secure boot workflows, avoids external key management complexity, and enhances overall system robustness against scaling threats such as mass device cloning and credential leakage. The device’s approach exemplifies a paradigm shift toward embedding trust directly into component architectures, thus raising the assurance level in IoT networks and mission-critical infrastructure deployments.
Power management and low-power features of AT25SF161B-SSHB-T
The AT25SF161B-SSHB-T integrates advanced power management mechanisms tailored for applications demanding stringent energy efficiency. Its low-power architecture centers on minimizing quiescent consumption, achieving a maximum standby current of only 15 µA. A further reduction is realized through the Deep Power-Down mode, where current drops to 1.5 µA. This significant current suppression relies on optimized silicon design, including internal bias gating and leakage mitigation techniques at the peripheral circuitry, which collectively extend operational life in battery-based systems.
Transitioning between active and dormant states is streamlined by fast resume commands. These enable rapid reactivation from Deep Power-Down, maintaining system responsiveness while effectively supporting aggressive duty-cycling. The underlying command protocol utilizes minimal command cycles, orchestrated by efficient internal state management, reducing the temporal overhead frequently encountered in legacy flash memories. Such swift context restoration is critical in scenarios where frequent wake/sleep operations are required, such as in distributed wireless sensor networks and mobile measurement devices.
In practical deployments, leveraging low-power modes can substantially heighten overall system longevity and thermal stability. For sensor nodes sampling sporadically, configuring the AT25SF161B-SSHB-T to enter power-down after each data transaction conserves charge and limits parasitic dissipation. In edge devices with intermittent connectivity, the device's low leakage supports multi-year maintenance cycles even with modest battery capacities.
Microcontroller integration benefits as well, thanks to predictable power state transitions and the ability to align memory wake-up timing with processor clocking, minimizing wasted cycles during polling routines. It is advisable to synchronize Deep Power-Down entry and exit commands with scheduled system sleep intervals, exploiting the flash’s brief resume latency to maintain near-instant access without sacrificing power. Through disciplined firmware management and real-world validation, these low-power features prove critical in shrinking energy footprints, reducing heat generation, and enabling innovative designs with harsh power constraints.
Engineered with application flexibility in mind, this device’s power management suite goes beyond typical datasheet figures. The combination of sub-10 µA states and rapid recovery extends usability in emerging fields where autonomous operation, long-term reliability, and energy-aware hardware design are pivotal. The AT25SF161B-SSHB-T, therefore, establishes itself as a foundational building block for next-generation, power-optimized embedded systems.
Electrical and thermal characteristics of AT25SF161B-SSHB-T
The AT25SF161B-SSHB-T is engineered for robust performance across demanding embedded applications, with electrical features tailored to enhance both system design flexibility and reliability. Operating from a supply voltage range of 2.5 V to 3.6 V—while guaranteeing reliable function down to 2.7 V—this device accommodates design tolerance variations common in distributed power architectures. Such voltage agility not only eases BOM constraints but also prolongs compatibility across evolving board-level standards.
A maximum supported SPI clock frequency of 108 MHz ensures high-throughput operation. By maintaining this frequency across all SPI protocol variants, the device maintains timing determinism—critical for systems requiring predictable data exchange and supporting real-time data logging or on-the-fly firmware updates. The SPI bus’s resilience at these speeds contributes to streamlined firmware uploads and batch programming, demonstrating efficiency even in heavily multiplexed communication topologies.
Endurance specifications underline the device’s viability in cycle-intensive storage tasks. Capable of withstanding 100,000 program/erase cycles per sector, this memory enables system designers to implement logging, configuration, and scratchpad operations without risking accelerated wearout. A minimum of 20 years’ data retention at the rated temperature reinforces its suitability for mission profiles where extended maintenance intervals are mandatory or where long-term calibration data must be preserved. This long retention timeframe secures product memory integrity against both operational and field-storage aging effects, reducing latent defect risk post-deployment.
The operational temperature range—spanning –40°C to +85°C—supports deployment in environments where reliability is non-negotiable, such as industrial controllers, automotive ECUs, and edge processing modules. This thermal robustness facilitates dependable cold-starts and continued use in non-climate-controlled enclosures, ensuring that device performance remains unaffected by seasonal and geographic variability.
Renesas’ provision of exhaustive documentation, including absolute maximum ratings, DC/AC parameters, and detailed power-up requirements, streamlines design validation and risk assessment. These specifications support precise timing integration into multi-voltage systems and help enable rapid compliance verification for international safety, EMC, and quality standards. Rigorous attention to these documented parameters is essential, as improper sequencing or undervoltage incidents during power-up can compromise data integrity or device longevity, particularly in hot-plug or battery-backed scenarios.
A layered approach to system integration is favored—beginning with careful alignment to power supply sequencing guidelines and progressing through verification of SPI timing compatibility with the host microcontroller or SoC. In practical deployment, pre-production builds often benefit from focused soak tests across the specified temperature, cycling, and retention ranges to uncover edge-condition failure modes. Attention to detail during PCB layout, such as minimizing SPI trace lengths and optimizing decoupling, further reduces noise susceptibility at high data rates.
The interplay between these electrical and thermal features results in a non-trivial enhancement of system-level reliability and design flexibility. Strategic exploitation of the device’s broad operating envelope allows cost-optimized platforms to serve in premium roles, supporting the trend toward modular, upgradeable field electronics. Through rigorous adherence to the documented integration practices, it becomes possible to leverage the device’s full feature set, maximizing both immediate manufacturability and long-term deployed value.
Integration considerations and use-case scenarios for AT25SF161B-SSHB-T
AT25SF161B-SSHB-T integrates seamlessly into a diverse array of embedded systems, chiefly owing to its well-engineered command interface and robust feature set tailored for high-reliability applications. At its core, this device embodies a flexible SPI flash architecture with full adherence to industry-standard instruction sets, ensuring straightforward compatibility with legacy and modern designs. Rapid interface initialization and broad voltage tolerance facilitate stable operation across industrial-grade environments susceptible to supply variations and electrical noise.
The execute-in-place (XiP) feature is particularly significant for designs requiring minimal boot times and low RAM usage. By enabling direct code execution from flash, system designers can reduce external memory costs and simplify PCB layout, directly impacting product bill-of-materials and time-to-market. This characteristic, paired with efficient sequential read performance, suits microcontroller-based systems constrained by limited internal memory—such as HVAC controllers or compact portable instrumentation—allowing for immediate firmware access after power-up. XiP reliability is further reinforced by robust memory endurance and read-disturb resistance, aligning with requirements of automotive or process control subsystems that undergo frequent power cycling.
Command set flexibility extends hardware reusability, such that the AT25SF161B-SSHB-T can function as a drop-in replacement for pre-existing SPI flash footprints. Migration is streamlined through support for standard read/program/erase instructions as well as device identification routines. This compatibility model is critical in large-scale deployments where design risk and field rework impose high cost penalties. Field-upgradable firmware and configuration storage benefit directly; code integrity checks and transactional update algorithms are implementable thanks to accelerated page program and sector erase cycles, coordinating closely with microcontroller supervisory logic to manage power-fail scenarios.
Advanced security and reliability commands offer tangible value in mission-critical environments. Hardware and software protection regimes, including block lock-down and programmable OTP (one-time programmable) regions, provide multiple layers of defense against unauthorized rewriting or malware injection. Suspend/resume instructions allow time-sensitive operations—such as real-time sensor sampling or secure communications—to proceed with tight latency budgets even as background firmware updates or non-critical data logging occurs. Deep power-down mode augments overall system energy efficiency and aligns with aggressive standby targets typical in IoT edge nodes and smart home endpoints.
Practical deployment reveals that leveraging suspend/resume functionality during concurrent data logging and firmware upgrade mitigates the risk of process interruption, enhancing both device robustness and user experience. Responsive wake-from-deep-power-down mechanisms simplify aggressive power-domain partitioning without incurring excessive code complexity. XiP operation, tested under rapid boot scenarios, consistently meets sub-10ms execution thresholds in typical microcontroller environments.
The AT25SF161B-SSHB-T exemplifies a convergence of memory-centric innovation and practical system-scale reliability. Its balanced command ecosystem, operational flexibility, and on-die protection mechanisms address a broad spectrum of applications—extending from factory-floor real-time controls to consumer automation nodes—where persistent, secure, and rapidly accessible code and data storage is crucial. Carefully architected integration of these features within the broader system fabric multiplies design robustness and streamlines deployment across both legacy and forward-looking embedded platforms.
Potential equivalent/replacement models for AT25SF161B-SSHB-T
When assessing alternatives to the AT25SF161B-SSHB-T for system integration, primary considerations focus on functional equivalence, electrical compatibility, and long-term sourcing stability. The intrinsic architecture of SPI NOR flash memory, defined by density, protocol, and performance envelope, frames the substitution process.
The Renesas AT25SF161B series, available in multiple packaging options—including SOIC, DFN, and WLCSP—presents immediate pin-level and command-set parity. This enables seamless firmware migration within an established design ecosystem, where maintaining identical timing diagrams and instruction sequences is crucial. Package variants allow for footprint optimization without sacrificing software interchangeability, facilitating both high-reliability through-hole layouts and miniaturized assemblies for constrained PCB real estate.
Alternatives such as Micron MT25QL16, Winbond W25Q16JV, and Macronix MX25L1606/45 incorporate advanced SPI features, supporting 108 MHz clock rates and dual/quad I/O modes. These models extend bandwidth and throughput, delivering faster boot times or data access in performance-sensitive applications. Their sector organization and block protection modes align with contemporary security and integrity requirements, commonly seen in firmware update and fail-safe mechanisms. Attention to voltage thresholds, standby current profiles, and erase/write endurance represents best practice in power-managed or mission-critical deployments, where peripheral behavior under brownout or transient conditions must remain deterministic.
Legacy-compatible devices with reduced speed grades or extended temperature ratings present a contingency pathway for designs exposed to periodic supply disruption or evolving compliance landscapes. Rightsizing performance against cost, and evaluating regulatory attributes such as RoHS or halogen-free labeling, secures multi-year product availability and anticipates future revision cycles. Notably, aligning package dimensions and pinouts across generations mitigates PCB redesign costs and accelerates time-to-market in prototyping stages or certification loops.
In field applications, rigorous validation of the replacement's command protocol, memory map, and timing margins is standard practice before final substitution. Engineers leverage automated test benches to simulate boundary conditions, cross-checking legacy and new devices for output drift and latency under identical drive signals. Such empirical evaluation, coupled with careful datasheet cross-referencing, uncovers subtle electrical or operational disparities that may affect downstream system stability.
An insightful approach involves mapping system-level requirements—such as maximum firmware size, update frequency, and interface signaling—directly onto flash device features. This process not only filters out over-specified parts but also exposes latent bottlenecks, particularly in mixed-signal or embedded environments. Internalizing supply chain intelligence enables engineering roadmaps to remain resilient amid market volatility, integrating multisource qualification as an intrinsic design consideration. Such proactive planning transforms component selection from a transactional exercise into a strategic function, optimizing device utility across the product lifecycle while maintaining engineering headroom for iterative enhancement.
Conclusion
The AT25SF161B-SSHB-T integrates a well-balanced suite of SPI NOR Flash features optimized for high-performance embedded memory subsystems. Its core architecture centers on a low-latency serial interface, supporting dual and quad SPI protocols to maximize data throughput. This enables rapid boot and seamless execution-in-place (XIP) schemes, which are essential in real-time applications such as industrial control, network edge devices, and high-resolution display systems. Fast page and block erase operations, coupled with industry-standard command sets, streamline software integration and minimize firmware overhead throughout the development cycle.
Security mechanisms extend beyond basic access protection, leveraging deep write and erase safeguards, configurable status registers, and sophisticated lock-down features. These enable robust defense against unauthorized modifications and accidental corruption, supporting encrypted firmware management in applications where code integrity and intellectual property protection are paramount. The device’s support for one-time programmable bits further facilitates secure device personalization and lifecycle management.
From a reliability perspective, the AT25SF161B-SSHB-T’s endurance rating and data retention attributes reflect proven silicon process maturity, ensuring long-term stability under wide temperature and power supply conditions. Engineers benefit from adaptive programming algorithms and comprehensive error detection protocols, which reduce field failures and simplify design qualification processes—even as the device’s longevity supports extended product life cycles in mission-critical deployments.
Package diversity—including compact footprints like SOIC and DFN—addresses PCB real estate constraints and thermal performance requirements, while the device’s compatibility with a broad base of drop-in equivalents grants supply chain agility without sacrificing design consistency. This interoperability, combined with Renesas’s detailed documentation and development tools, accelerates design iteration and validation, particularly in constrained resource environments.
Practical integration scenarios showcase the device’s efficiency in low-power IoT nodes, where standby current reduction preserves battery reserves during extended sleep cycles. In high-frequency transaction systems, developers consistently achieve deterministic write and read timing, maintaining responsive user experiences and real-time data logging. Adaptive clocking and configurable dummy cycles further enable seamless migration across MCU and SoC platforms with varying SPI controllers.
Strategically, leveraging the AT25SF161B-SSHB-T positions embedded hardware for agile scaling, from base models through to feature-dense variants, with minimal firmware adaptation. This flexibility, when tightly bound to rigorous security and reliability mechanisms, creates a modular memory blueprint capable of supporting next-generation connected devices and evolving regulatory standards. The interplay of established ecosystem support and nuanced configuration options strengthens overall subsystem robustness and helps unlock advanced application potential.
