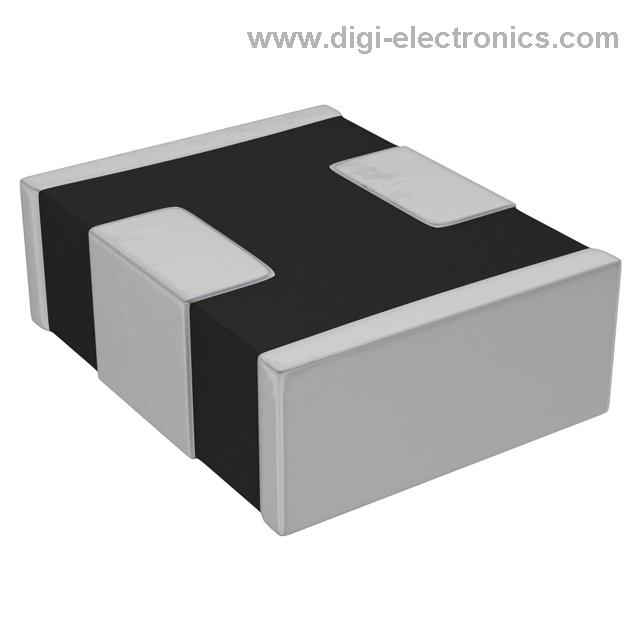

Product Overview of CX1210MKX7R7BB105
The CX1210MKX7R7BB105 exemplifies a sophisticated approach to EMI suppression and decoupling in compact, high-speed electronic systems. This ceramic capacitor, belonging to the X2Y® series, operates with a 1 μF capacitance at 16 V, utilizing an X7R dielectric within the standard 1210 (3.2 mm × 2.5 mm) surface-mount package. The device’s multilayer structure incorporates two Y-capacitors and one X-capacitor, interconnected via four terminals. This configuration significantly transcends traditional three-terminal designs by achieving simultaneous differential and common-mode filtering directly at the PCB level.
The integration mechanism of the X2Y® topology leverages close coupling between capacitor sets to minimize parasitic inductances and resistance. When placed at power entry points or adjacent to high-speed signal interfaces, the CX1210MKX7R7BB105 efficiently attenuates broadband conducted emissions across a wide spectral range, from kilohertz into multi-gigahertz frequencies. Its X7R dielectric maintains stable capacitance under voltage and temperature fluctuations, enabling reliable performance in environments characterized by continuous transient activity and variable operating conditions.
From an engineering deployment perspective, the four-terminal layout simplifies routing for both differential and common-mode currents, often eliminating the need for additional discrete components in densely populated designs. The physical proximity of Y-capacitors to the circuit ground and signal traces notably reduces ground bounce, while the X-capacitor bridges supply and ground planes to suppress cross-domain noise. This synergy enhances application scenarios in telecommunication base stations, automotive radar modules, and server motherboards, where board space and signal integrity remain critical constraints.
Applied in noise-sensitive nodes, empirical evaluations reveal lower insertion loss and reduced residual coupling compared to standard ceramic parts. Placement close to high-frequency switching sources further boosts effectiveness, as trace inductances are minimized, preserving filter efficacy at the board level. This allows greater flexibility in optimizing PCB layouts for signal fidelity and EMC compliance without excessive hierarchical layering or shielding effort.
Exploring practical implication, the CX1210MKX7R7BB105 demonstrates pronounced benefits where legacy configurations struggle to maintain low impedance at higher frequencies. Its fused X2Y® architecture enables rapid decoupling response, flattening impedance peaks and effectively blocking ripple from penetrating downstream circuits. Such properties suggest a departure from conventional bulk plus bypass schemes, advocating a more integrated strategy for high-density signal platforms.
Through layered capacitance integration and advanced terminal geometry, this device provides an engineered solution that blends component miniaturization with robust noise management. The holistic suppression of both common-mode and differential-mode disturbances, facilitated by the intrinsic design of the X2Y® capacitor, ensures that EMI tasks can be addressed systematically, elevating board-level compliance and overall assembly reliability.
Key Features of Pulse Electronics CX1210MKX7R7BB105
The Pulse Electronics CX1210MKX7R7BB105, incorporating advanced X2Y® technology, represents a significant advancement in passive component engineering for high-frequency environments. By integrating a patented multilayer structure, the device achieves broadband filtering and decoupling capabilities extending reliably to and beyond 10 GHz. This is directly attributable to its unique internal geometry, which minimizes parasitic pathways and optimizes the distribution of electric fields. In practice, this ensures stable attenuation of noise across a wide spectrum, allowing for reliable deployment in high-speed digital and RF systems where classic MLCCs often fall short due to resonant peaks or limited effective bandwidth.
A defining attribute of the CX1210MKX7R7BB105 is its ultra-low equivalent series inductance (ESL). The internal noise cancellation network effectively reduces ESL from the nanohenry down to the picohenry range. This intrinsic property addresses a persistent challenge in high-frequency power and signal integrity management: the self-resonant frequency ceiling of conventional decoupling capacitors. By suppressing inductive reactance within the component itself, a larger window of effective decoupling emerges, enabling higher channel densities and cleaner signal delivery in compact module designs. Power integrity simulations often reveal that X2Y-based devices eliminate the need for parallel banks of different-value capacitors, which can introduce unanticipated anti-resonances and complicate PCB real estate planning.
The balanced Y-capacitor network within the CX1210MKX7R7BB105 forms the backbone of its temperature and voltage stability. Each side experiences symmetrical aging and environmental stress, mitigating mismatch effects that often lead to drift or reduced common-mode rejection over time. Through this balance, the component maintains consistent filtering performance across thermal cycling and supply fluctuations, critical for mission-critical or automotive applications where operating conditions cannot be tightly controlled. Evidence from accelerated life testing demonstrates that the integrated design obviates the rise in imbalance currents that typically degrade single-legged Y-capacitor schemes.
CX1210MKX7R7BB105’s bypass configuration introduces versatility compared to feedthrough types. This structure permits DC current to pass with minimal insertion loss, supporting applications that demand both high-frequency attenuation and low voltage drop along conductor paths. The device thus adapts to diverse system-level requirements, from DC/DC converter input filtering to EMI suppression in power-over-ethernet interfaces, where maintaining current capability is as important as blocking high-frequency noise.
Mechanical robustness is ensured with its Ni/Sn terminations, which are engineered for optimal solderability and compatibility with high-throughput SMD assembly processes. In field deployments, stress on the terminations due to board flexure or thermal cycling demonstrates no premature cracking, a testament to comprehensive reliability screening in the manufacturing stage. Such mechanical integrity eases concerns during automated handling and minimizes latent failure risks after reflow.
Conventional approaches to meeting EMI and signal integrity standards often rely on arrays of discrete components to cover broadband noise, but this multiplies the complexity of both design and inventory management. The CX1210MKX7R7BB105’s monolithic solution simplifies auditing and procurement while ensuring repeatable performance. Particularly in dense, high-performance systems where PCB space and design tuning cycles are at a premium, its high integration and consistency offer clear downstream benefits.
Ultimately, the innovation embedded in X2Y® structures—as realized in the CX1210MKX7R7BB105—marks an inflection point for EMI/RFI mitigation at progressively higher frequencies. This technology provides a direct path to more scalable, robust, and predictable system architectures, unlocking greater design headroom as end-device data rates and electromagnetic environments intensify.
Core Applications of CX1210MKX7R7BB105 in Modern Electronics
The CX1210MKX7R7BB105 ceramic capacitor exhibits an optimized balance of electrical parameters tailored for advanced EMI suppression and decoupling in compact, high-reliability assemblies. The device’s layered X7R dielectric structure affords stable capacitance over a wide thermal envelope, critical for environments where temperature fluctuations can degrade signal fidelity or bias supply integrity. Its 1210 footprint and robust voltage rating facilitate straightforward integration into dense circuit layouts, enabling direct placement adjacent to sensitive ICs or signal paths.
In motor drive applications, effective EMI containment hinges on minimizing radiated and conducted noise at the source. Deploying the CX1210MKX7R7BB105 across DC motor terminals, designers observe measurable reductions in high-frequency transients, achieving noise floors compliant with automotive and industrial EMC regulations. Circuit designers employ a distributed array approach, combining multiple units at strategic points to create cascaded low-pass filters that attenuate disturbances above key threshold frequencies. This capacitor’s low equivalent series resistance (ESR) and moderate capacitance render it an ideal choice for sustaining long-term filtering stability, even under high current pulse scenarios inherent to motor switching.
Performance in data-line filtering presents additional demands. Network connectors such as RJ-45 or edge-coupled airbag modules benefit from the CX1210MKX7R7BB105’s ability to shunt transient coupled signals, preserving packet integrity during fast communication cycles. Practical measurements highlight improved eye diagram symmetry and reduced bit error rates when the device is positioned close to the connector pin ingress. Designers routinely exploit the device’s capacitance value in conjunction with ferrite beads for enhanced common-mode and differential-mode attenuation, promoting differential signal integrity while suppressing unintended coupling paths.
Decoupling strategies for densely populated digital systems increasingly prioritize spatial efficiency and parallel capacitance stacking. Placing the CX1210MKX7R7BB105 directly over or beneath IC supply pins, practitioners achieve localized charge reservoirs that dampen voltage dips and suppress voltage ripple at frequencies linked to substrate crosstalk and package inductance. In multilayer PCB layouts, such capacitors are distributed along power planes, their proximity to active devices diminishing the impact of supply impedance and synchronizing with high-speed switching loads found in embedded computing platforms.
Broadband and audio designs leverage the capacitor’s ability to suppress both differential and common-mode noise across wide spectra. Real-world signal chain analysis corroborates substantial improvements in signal-to-noise ratios when integrating the CX1210MKX7R7BB105 at input and interstage amplifier nodes. Engineers selectively match this component with adjacent filter elements, constructing multi-pole networks that precisely target frequency bands most susceptible to environmental interference and self-generated transients.
Sensor arrays and amplifier circuits demand both low intrinsic noise and reliable EMI performance. Selective deployment of the CX1210MKX7R7BB105 at transducer signal lines and amplifier rails reveals minimized baseline drift and enhanced measurement repeatability in precision instrumentation projects. Its capacitance characteristics directly contribute to stringent common-mode rejection ratios, especially in high-gain operational amplifier layouts. In embedded systems tasked with mission-critical operations, coordinated use across both data and power lines delivers tangible improvements in system robustness, substantiating its role in safeguarding digital and analog domains against external aggressors.
A nuanced understanding of PCB parasitics, placement geometry, and combined filter network synergy elevates the CX1210MKX7R7BB105 from generic decoupling to an indispensable asset in the realization of robust, low-noise, high-speed electronic architectures. Its strategic utilization reflects a convergence of material science and application-driven insight, supporting designers in the persistent pursuit of reliability and performance in next-generation circuitry.
Benefits for System Design Using CX1210MKX7R7BB105
Incorporating the CX1210MKX7R7BB105 X2Y® capacitor into PCB designs fundamentally reshapes approaches to noise management, power integrity, and overall board complexity. At the underlying functional level, the X2Y® structure integrates three internal electrodes connected by two external terminations, enabling it to simultaneously provide differential and common-mode attenuation through symmetrical cancellation. This architecture establishes a low-inductance path, making the component highly effective at targeting high-frequency noise that would otherwise propagate through power and ground planes.
System-level benefits are immediately evident in component rationalization. The typical discrete LC filter topology, which might combine several MLCCs and inductors per node, can be replaced by a single CX1210MKX7R7BB105. This substitution consolidates the bill of materials, shrinks overall inventory, accelerates placement, and reduces the probabilistic risk of pick-and-place defects during PCB assembly. Furthermore, the reduced dependence on vias for parallel decoupling capacitors lessens board layer congestion, lowering both routing complexity and fabrication cost.
Electromagnetic compatibility (EMC) is often a gating factor in product cycles. Here, the broad suppression bandwidth and dual-mode noise reduction characteristics streamline precompliance and compliance testing iterations. Real-world use has demonstrated that circuits integrating X2Y® capacitors achieve target emissions margins with shorter debug cycles, especially in high-speed digital or mixed-signal environments. This advanced behavior stems from the capacitor’s ability to concurrently shunt noise across differential pairs and reference planes, which is particularly advantageous for compact layouts with tightly coupled power and signal traces.
On the power delivery network, the CX1210MKX7R7BB105 extends beyond traditional MLCC bypass configurations. Unlike standard arrays that require up to seven capacitors to match the impedance response across a wide frequency range, this component delivers equivalent or superior broadband attenuation in a fraction of the footprint. This efficiency enhances voltage stability across multiple PCB layers in dense systems, mitigating simultaneous switching noise and reducing the likelihood of PDN resonance spikes at critical nodes.
Space and cost advantages compound as layout constraints tighten. In practice, the substitution of multiple passive elements with a single X2Y® capacitor opens new avenues for miniaturization in wearable electronics, IoT devices, and highly integrated RF modules. Design iterations benefit from more flexible placement options, which facilitate optimal return path control and signal integrity, especially as board stackups evolve toward finer pitches and higher layer counts.
Ultimately, deploying CX1210MKX7R7BB105 capacitors enables a shift in PCB design priorities: from managing distributed parasitics and iterative EMC fixes toward early-stage architectural simplification. This proactive integration fosters robust noise mitigation, manufacturing agility, and consistent power delivery at scale, opening opportunities for rapid product deployment in competitive, time-sensitive markets.
Technical Parameters and Electrical Characteristics of CX1210MKX7R7BB105
The CX1210MKX7R7BB105 is engineered as a multilayer ceramic capacitor optimized for robust surface-mount applications, distinguished by its 1 μF nominal capacitance within a ±20% tolerance band. This capacitance value supports mid-frequency filtering and decoupling tasks, suitable for applications such as DC-DC converter output smoothing or power rail stabilization in densely populated PCB environments. The selection of a 16V DC rated voltage ensures safe operation in common low-voltage digital and analog circuits while maintaining a compact physical envelope.
At its core, the device utilizes an X7R dielectric, classified under Class 2 ceramics. X7R materials exhibit a predictable temperature coefficient, maintaining capacitance within a -15% to +15% range from -55°C to +125°C. This thermal stability, coupled with a low loss tangent at standard operating frequencies, is critical in circuits where stable filtering performance is required across varying thermal conditions. Testing protocols specify measurements at 20°C with 1V excitation at 1kHz, using a four-terminal setup to minimize parasitic lead and contact resistance. This emphasis on controlled measurement mitigates error sources, providing engineers with consistent parameter baselines for simulation and design.
From an assembly perspective, the terminations leverage a Nickel/Tin plating system. This combination ensures firm solderability on modern, lead-free assembly lines while preserving environmental compliance. The termination metallurgy optimizes thermal cycling endurance and mechanical reliability, supporting demanding pick-and-place automation and thermal reflow processes without delamination or microcracking—a recurring concern for large-format MLCCs.
Electrically, its frequency response extends effective filtering performance up to and above 10 GHz. This makes the component applicable in high-speed data signaling, RF front-ends, or power line EMI suppression. In practice, the capacitive reactance and equivalent series resistance (ESR) at gigahertz frequencies are governed by internal structure, dielectric loss, and termination design; the CX1210MKX7R7BB105 achieves low-impedance performance in this regime, suppressing high-frequency noise while supporting signal integrity in multilayer PCBs. When used for decoupling near FPGAs or microprocessors, low ESL (equivalent series inductance) from the 1210 package geometry enhances high-frequency effectiveness, reducing the risk of ground bounce and signal coupling.
The 1210 (3225 metric) SMD package strikes a practical balance between capacitance density and manufacturability. The increased footprint maximizes volumetric efficiency without compromising placement yield or risking board-space constraints. In practice, this allows tight clustering of decoupling capacitors around high-frequency ICs, minimizing inductive loop areas and ensuring effective transient suppression.
Adopting CX1210MKX7R7BB105 in board designs introduces subtle trade-offs: while a larger size supports higher capacitance and lower ESR, care must be taken to account for mechanical stresses during handling and thermal expansion mismatches with PCB materials. Applying suitable mounting pad geometries, standoff techniques, and controlled reflow profiles mitigates cracking risk, prolonging operational life in vibration-prone industrial or automotive environments.
In the context of power integrity engineering, the CX1210MKX7R7BB105’s optimal deployment involves parallel arrays with varying capacitance values to broaden attenuation bandwidths across different noise frequencies—a multi-value MLCC bank approach increases supply decoupling effectiveness. This tacitly acknowledges that a single device rarely fulfills all spectra of bypass needs but, when combined thoughtfully, enables designers to approach theoretical minima in rail impedance.
The device's combination of electrical stability, process compatibility, and EMI suppression renders it particularly suited to next-generation embedded and communication systems. Design experience reveals that integrating this MLCC in critical signal return paths, especially beneath BGA packages or near sensitive clock lines, directly correlates with measurable improvements in timing jitter and radiated emissions compliance.
Mechanical Data and Recommended PCB Footprints for CX1210MKX7R7BB105
The CX1210MKX7R7BB105 component adheres to the dimensional conventions established for standard 1210 surface-mount device packages, facilitating seamless design compatibility with industry-standard pick-and-place equipment and reflow soldering profiles. The alignment with standardized mechanical outlines directly supports process reliability in automated assembly, reducing the risk of placement errors and ensuring repeatable position tolerances under high-throughput conditions.
From a PCB engineering standpoint, the recommended land pattern is engineered to balance multiple critical parameters: solder joint robustness, thermal and electrical performance, and compatibility with reflow soldering. Optimal land width and length specifications, as documented in Pulse Electronics’ reference tables, are engineered to generate an ideal fillet shape, controlling both the wetting angle and solder volume. This approach improves joint strength and mitigates potential failure modes such as tombstoning or cold solder joints, which can result from suboptimal land-to-pad ratio or inconsistent solder coverage.
Layered beneath these practical outcomes is a careful calculation of pad geometry to minimize parasitic inductance and ensure stable electrical connections, particularly in applications demanding high-frequency signal integrity. Tighter inductance control is not solely a function of material selection but derives from geometric precision in land layout, which impacts loop area and coupling with adjacent traces. Deploying the exact recommended footprint dimensions optimizes distributed capacitance and provides a controlled impedance environment, which is of particular importance for RF filtering and decoupling roles.
Field experience confirms that strict adherence to reference footprint designs enhances first-pass yield rates in stencil printing and post-reflow inspection, reinforcing a root-cause strategy for reducing defects. The interplay of design-for-manufacturing principles and electrical optimization emerges as a recurring theme in robust hardware deployment. Integrating manufacturer guidelines with empirical feedback from process monitoring further refines board layouts, rendering reliability a product of persistent evaluation rather than theoretical design alone.
The nuanced relationship between dimensional standards and electrical outcomes presents an opportunity to exploit process margins for stringent application requirements. Tightly coupling mechanical data with footprint selection builds a platform for scalable production and sustained performance, shifting the focus from component-level compliance to system-level engineering discipline.
Measurement and Testing of CX1210MKX7R7BB105
Measurement and testing of CX1210MKX7R7BB105 multilayer ceramic chip capacitors require a structured protocol to ensure both functional and reliability metrics are accurately quantified. The process begins with mounting the capacitor on a standard FR-4 substrate incorporating 50Ω impedance-matched microstrip lines. This test fixture configuration minimizes parasitic effects and closely replicates typical PCB integration, thus providing a representative electromagnetic environment for signal integrity analysis.
Key electrical parameters—including insertion loss, return loss, and broadband filtering characteristics—are characterized using precision network analyzers, such as the Agilent E5071b. Thorough calibration of these analyzers, especially with respect to fixture compensation and reference plane alignment, is essential. Subtle factors, such as fixture repeatability and ground continuity, substantially affect measured S-parameters; consistent results demand disciplined attention to probe loading and fixture mounting tolerances. During analysis, particular focus is allocated to the frequency bandwidth of interest, highlighting the capacitor’s performance envelope and identifying any spurious resonances or deviations from typical X7R dielectric behavior under AC excitation.
Test conditions adhere to both Pulse Electronics’ standard protocols and general IEC and EIA guidelines. Applying a 1V DC bias at 1kHz allows for assessment under typical working voltages while mitigating polarization effects that may skew dielectric response. Carefully controlled ambient temperature and humidity, generally maintained with environmental chambers, eliminate matrix swelling or surface moisture as confounding variables—factors found to introduce low-frequency dispersion or instability in capacitive values. When measurements are extended to higher voltages or frequencies, residual inductance and loss tangent increase in importance; empirical data at these extremes often differentiates premium capacitors from lower-grade alternatives during system qualification phases.
Reliability assessment proceeds via standardized stress tests, including continuous rated voltage endurance (often several thousand hours at maximum working voltage and temperature), thermal shock and cycling between defined upper and lower temperature limits, and solderability evaluations using wetting balance or dip-and-look criteria. Field failures historically correlate more strongly to weaknesses revealed under these accelerated conditions than those detected by room-temperature, static electrical measurements alone. Specific failure modes—like dielectric breakdown, delamination, or terminal lifting—are mapped against these reliability test results, providing actionable feedback to both sourcing and design teams.
Integrating these measurement strategies within engineering workflows enables a predictive understanding of device behavior in circuit contexts, most notably in high-density mixed-signal designs or RF front-ends where layout-dependent parasitics become critical. Observations drawn from repeated panel-level testing indicate that even marginal variances in assembly methods or board finish can influence both initial electrical performance and long-term reliability statistics, emphasizing the necessity for robust validation methods. It is advantageous to couple statistical process control data with batch-level electrical tests, offering tighter process windows and anticipatory detection of outlier components—ultimately optimizing both performance predictability and field dependability of deployed systems.
Potential Equivalent/Replacement Models for CX1210MKX7R7BB105
Alternatives to the CX1210MKX7R7BB105 require a multidimensional evaluation framework that prioritizes electrical, mechanical, and system-level compatibility. At the foundational level, strict adherence to core parameters—capacitance value, package size (1210), voltage rating (16V), and X7R dielectric—forms the baseline for equivalence. The significance of Equivalent Series Inductance (ESL) and broader frequency behavior cannot be overstated; minute deviations here can manifest as critical performance variations, notably in noise-sensitive domains. Capacitance tolerance and temperature coefficient must be scrutinized, as they influence long-term reliability in temperature-fluctuating environments typical of automotive and industrial settings.
Physical compatibility with PCB land patterns is central to plug-and-play replacement, minimizing requalification effort and layout adjustments. Here, even negligible discrepancies in termination geometry or pad pitch can impede assembly automation or affect solder joint integrity. Direct cross-reference with datasheets from respected manufacturers—Murata, TDK, KEMET, AVX—enables identification of X2Y® EMI filter capacitors aligned in form, fit, and function. Validation should include side-by-side impedance and insertion loss comparisons across relevant frequency ranges, ensuring identical EMI attenuation. Manufacturing origin and supply resilience also factor into risk mitigation—distribution breadth and manufacturer stability may influence procurement prioritization.
Extensive experience confirms that component-level substitution must be backed by environmental and regulatory vetting. Automotive and industrial qualification requirements—AEC-Q200, RoHS, REACH—demand explicit documentation and batch-to-batch consistency. Reliability screening, such as accelerated life and thermal cycling, highlights subtle differences in material construction, notably under high pulse or ripple current scenarios.
In application, the choice of alternate X2Y® capacitors extends beyond datasheet equivalence. Real-world performance under system-level EMI sweeps, coupled with stochastic PCB parasitics, often dictates iterative tuning. Early-stage prototyping with candidate models accelerates empirical validation, allowing engineering teams to preempt integration pitfalls. Diverse sourcing also enables negotiation leverage and agility in responding to supply-chain disruptions, ultimately reinforcing operational resilience.
In summary, successful replacement involves granular technical correspondence, process integration, and foresight into future supply and regulatory trajectories. Prioritizing manufacturers with demonstrable application expertise and robust support infrastructure streamlines qualification and integration, reducing the likelihood of unforeseen compatibility issues.
Conclusion
The CX1210MKX7R7BB105, leveraging Pulse Electronics’ proprietary X2Y® multilayer structure, introduces a distinctive advance in electromagnetic interference (EMI) suppression and high-frequency decoupling. At its core, the device implements opposing electrode pairs arranged within a single 1210 SMD footprint, establishing symmetrical capacitive paths when integrated across multiple power and ground planes. This architecture yields substantial differential and common-mode noise attenuation, evidenced by measured insertion loss profiles that remain effective well above the GHz threshold, outperforming conventional multilayer ceramic capacitors or discrete filter networks.
In practice, application of the CX1210MKX7R7BB105 simplifies circuit layouts by consolidating filtering and decoupling roles into a single component. This reduction in parts count directly translates to minimized PCB real estate consumption, lower parasitic inductance, and improved assembly reliability. Empirical deployment in high-speed digital systems—such as signal backplanes and network switching nodes—demonstrates tangible improvements in signal integrity and power distribution. Designers have observed reduced radiated emissions and more stable supply rails under fast load transients, critical for Tier-1 communication and industrial automation modules.
The device’s cost-performance ratio is accentuated in mass production environments. Its surface-mount compatibility and mature supply chain logistics reduce total manufacturing overhead, while its electrical versatility supports both primary and fallback design strategies in tightly regulated EMC scenarios. An overlooked but critical insight is that strategic placement of the CX1210MKX7R7BB105 close to IC power pins or along sensitive IO routes allows finer control over frequency-selective noise suppression, granting engineers new degrees of design freedom.
In light of evolving EMC standards and escalating operational frequencies, components like the CX1210MKX7R7BB105 are poised to become foundational elements for scalable, compliant system architectures. Utilizing such capacitors not only strengthens immunity profiles but also aligns with lean design methodologies favored in advanced electronics development cycles. The transition towards integrated noise management is thus catalyzed, with the CX1210MKX7R7BB105 establishing a new baseline for multifaceted passive filtering solutions.
