Product Overview of MCP4651-104E/ST
The MCP4651-104E/ST represents a dual-channel 8-bit digital potentiometer optimized for high-integration precision control applications. This device is architected around a lightweight I²C serial interface, streamlining communication with host controllers and enabling real-time update of wiper positions. Its 100 kΩ total resistance, distributed over 257 discrete tap points per channel, permits fine-grained output regulation. The architecture ensures monotonic behavior across the range, a critical attribute for linear interpolation and closed-loop feedback systems where predictability is mandatory.

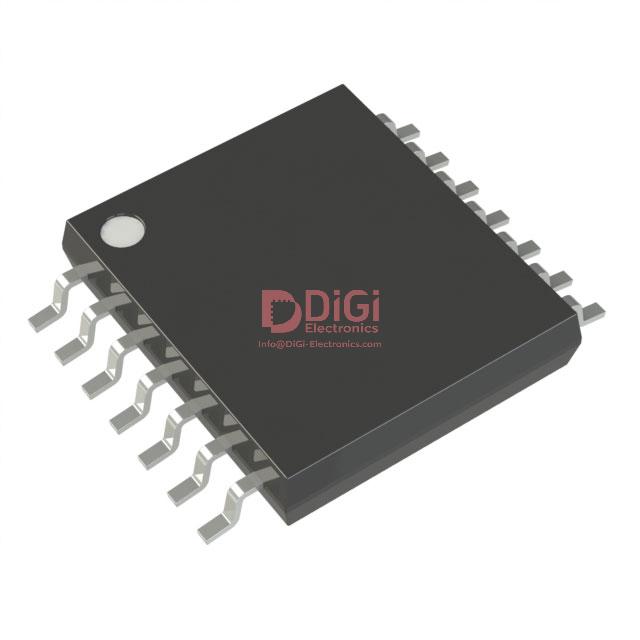

From a hardware integration perspective, the 14-TSSOP package allows for minimal PCB footprint, addressing design constraints in densely populated analog and mixed-signal circuits. The dual potentiometer configuration further enhances board-level efficiency, supporting multi-parameter control within a single IC, thereby reducing BOM complexity and simplifying interconnect routing. The choice of volatile memory is instrumental for use cases where temporary configuration is sufficient, such as live calibration or adaptive control mechanisms that do not require state retention after power removal. This design choice optimizes for speed, lowering the risk of data latency that can occur with non-volatile rewrites, and minimizing power-on initialization time.
The MCP4651-104E/ST excels in scenarios demanding dynamic analog signal adjustments. For example, in sensor interface modules, the fine tap granularity makes it possible to achieve precision trimming of input voltage dividers, directly impacting measurement accuracy and system reliability. The device's consistent linearity and low wiper resistance variation also make it suitable for gain setting in programmable amplifiers, where deterministic response is essential for repeatable analog performance during automated test procedures or adaptive filtering routines.
The implementation of I²C control leverages widely adopted communication infrastructure, allowing for straightforward connection to microcontrollers and SoCs without dedicated analog control lines. This digital programmability simplifies both initial configuration and real-time adjustments during field operation, reducing the risk of drift and mechanical wear found in traditional potentiometers. Embedded system designers can exploit rapid wiper updates in closed feedback loops, achieving high-precision tuning in applications such as VCO frequency adjustment, offset calibration in ADCs, or backlight intensity regulation.
In a practical context, integrating the MCP4651-104E/ST enables modular design practices, as the programmable resistors can be reconfigured in-software to accommodate late-stage product modifications or cross-platform derivative designs. This adaptability yields clear advantages in product lifecycle management. Additionally, the device's predictable power-up state and robust communication error handling curtail the risks associated with configuration ambiguity—vital for safety-critical systems and industrial automation.
A core insight with digitally controlled potentiometers such as the MCP4651 series lies in leveraging their volatile state to facilitate rapid prototyping, live system optimization, and scenarios where parameter adaptation outpaces the need for non-volatile retention. By tightly coupling system firmware and MCP4651 registers, engineers can orchestrate automated tuning routines that would be infeasible with manual potentiometer adjustment, opening pathways for smarter analog front-ends and self-calibrating electronics. This synergy underscores the growing value of “code-as-circuit” paradigms, where the boundaries between hardware and software control become increasingly permeable.
Key Features and Functional Capabilities of the MCP4651-104E/ST
The MCP4651-104E/ST integrates dual resistor networks, each capable of operating as either a potentiometer or rheostat. This flexibility originates from the architecture of digitally controlled nonvolatile variable resistors, enabling versatile adaptation in both signal adjustment and trimming applications. Each network features 256 discrete wiper positions across 100 kΩ nominal resistance, affording a granularity suitable for precision analog interpolation. The typical wiper resistance of 75 Ω is particularly significant in preserving signal fidelity—maintaining linearity in analog paths and yielding predictable system-level insertion loss, especially when cascaded or used in feedback circuits.
A key hardware layer concerns the communication interface. The device supports I²C protocol with speeds ranging from 100 kHz up to 3.4 MHz for high-speed data rates. Multi-modal clock compatibility ensures seamless integration with legacy as well as modern host controllers. Notably, the digital interface accommodates voltages up to 12.5 V, a rare robustness feature that withstands level-shifting and adverse transient events often encountered in mixed-voltage environments. This capability reduces the need for external protection or translation, streamlining designs in industrial and automotive systems.
Thermal and voltage stability emerge from the device’s low resistance temperature coefficients—50 ppm typical in rheostat mode and 15 ppm in potentiometer mode. This stability is critical for applications demanding minimal parameter drift over prolonged operating cycles or wide ambient ranges, such as sensor calibration or gain adjustment in harsh field deployments. The broad operating voltage range, from 2.7 V to 5.5 V (and functional operation down to 1.8 V), accommodates both traditional and low-voltage designs, facilitating platform standardization. Embedded Power-On Reset and Brown-Out Reset automate recovery from voltage drops, bolstering system reliability without recourse to discrete supervisory ICs.
At the analog switching layer, the inclusion of the TCON register enables independent connection or disconnection of each terminal (A, B, and W) for both networks. This feature is instrumental in managing leakage currents, providing enhanced control over power consumption during system standby or sleep states. When scaling to battery-powered devices, such selective terminal management enables aggressive power optimization strategies. Designers can further leverage the device's wiper control mechanisms, which permit incremental or decremental changes without issuing complex instruction sets. This simplification expedites real-time adjustment tasks, such as active filter tuning or dynamic offset correction, particularly valuable in production line calibration or adaptive closed-loop systems.
A practical aspect relates to the impact of wiper resistance and resistor end-to-end integrity. Direct experience in prototyping analog front-ends underscores the importance of accounting for wiper resistance in error budgets, especially at low-scale settings or in low-signal applications. For high-impedance nodes, careful configuration of the TCON register minimizes adverse shunt paths, preserving system input impedance and meeting EMC compliance without excessive external filtering. Additionally, the nonvolatile nature of wiper position storage ensures that calibration data persists through power cycles, a critical requirement in safety and mission-critical systems where startup determinism and repeatability are mandatory.
The key to exploiting the MCP4651-104E/ST lies in mapping its functional richness to system-level requirements. By leveraging its flexible resistance network configuration, robust interface tolerance, and advanced power management, solutions can be architected that are not only electrically resilient but also streamlined for manufacturability and field calibration. Its layered controllability paves the way for adaptive analog architectures, where dynamic tuning and self-calibrating features improve lifetime performance and reduce overall maintenance costs. This integration of precision, durability, and ease of use distinguishes the part as a prime facilitator for analog parameter management in connected and autonomous platforms.
Electrical Characteristics and Performance Benchmarks for MCP4651-104E/ST
The MCP4651-104E/ST incorporates robust electrical characteristics designed to accommodate precision analog processing within environments of fluctuating voltage, temperature, and externally induced noise. Its operational supply voltage spans from 2.7 V to 5.5 V, providing compatibility with standard logic and analog rails while maintaining predictable performance metrics. Beyond base resistance accuracy, the device demonstrates tight control over integral and differential nonlinearity (INL/DNL), a crucial factor for linear adjustment in signal chains. Wiper resistance optimization remains a focal parameter, reducing insertion loss and maintaining consistent attenuation regardless of wiper position.
Underlying the device’s resilience is a comprehensive approach to absolute maximum ratings and protection schemes. The MCP4651-104E/ST tolerates excursions on VDD up to 7.0 V and accommodates surges of up to 12.5 V on digital interface pins, protecting against inadvertent spikes during hot-swapping or board-level faults. A ±25 mA limit per output channel, alongside an overall power dissipation ceiling of 1.00 W for TSSOP-14, enables the device to interface directly with loads or buffer stages without risking thermal overrun. The operational ambient temperature between -40°C and +125°C extends applicability to industrial and automotive sectors, while the 4 kV HBM ESD protection supports installation in electrostatically challenging environments.
Performance characterization leverages detailed analysis of resistance stability across both dynamic and static conditions. Designers observe minimal temporal drift and low temperature coefficient effects, confirmed through extended testing regimes involving swept supply voltages and environmental cycling. Wiper transitions exhibit fast, predictable response times—critical for applications involving real-time gain adjustment, sensor calibration, or adaptive filter tuning. Power-on cycling demonstrates negligible hysteresis or offset accumulation, streamlining repeatability in automated analog setups.
Application deployment often emphasizes digital programmability in analog contexts. In active filter configurations, the MCP4651-104E/ST achieves stable cutoff frequency control without recalibration, even under high EMI or voltage transients. When incorporated into programmable gain amplifiers, the combination of low wiper resistance and high linearity ensures stepwise gain transitions with minimal artifacts. Sensor interface circuits profit from the device’s ability to maintain set points over temperature and voltage, directly enhancing measurement reliability.
The nuanced balancing of core parameters—particularly resistance accuracy and linearity—serves as a practical blueprint for integrating digitally-controlled potentiometers in complex analog systems. The underlying architecture supports direct replacement of mechanical pots and bridges the reliability gap often observed in discrete trimming solutions. Subtle design choices, such as overspecification of ESD thresholds and wide voltage margins, manifest efficiently in end-user robustness, reducing board redesigns and enhancing deployment confidence across a spectrum of application scenarios.
Pin Configuration and Functional Descriptions for MCP4651-104E/ST
The MCP4651-104E/ST in a 14-TSSOP package integrates two fully independent digital potentiometer networks, each accessible via dedicated A, W (wiper), and B terminals. The full potentiometric configuration enables precise voltage division, while floating either end terminal (A or B) seamlessly shifts operation to a rheostat mode. This enables practical optimization for both signal conditioning and current control within mixed-signal circuits. For example, selecting rheostat mode in an analog feedback loop can minimize power dissipation without sacrificing adjustability, a technique leveraged in precision gain staging.
High Voltage Command/Address 0 (HVC/A0) extends device address persistence and supports command sets capable of handling voltage levels beyond standard digital rails. This auxiliary pin allows flexible integration within systems requiring either high-voltage tolerance or unique device mapping, streamlining board layouts where differentiation between multiple devices is critical. The combination of A1 and A2 address pins further scales network complexity, permitting up to eight MCP4651 units on the same I²C bus. Addressing is straightforward; binary combinations configure unique identifiers for each package, facilitating modular upgradability or phased deployment of digital interfaces.
Serial clock and data (SCL, SDA) lines provide efficient bidirectional communication using the I²C protocol, supporting dynamic control over wiper positions and resistor shutdown states. Real-time adjustment is highly reliable due to the low bus capacitance inherent in tightly routed TSSOP footprints. Terminal configurations are robust against noise injection, particularly when employing shielded traces and maintaining proper PCB ground referencing through VSS and the exposed pad. The exposed pad, in particular, serves dual functions: enhancing thermal dissipation for sustained high-current operation and offering mechanical anchoring during automated assembly, an often undervalued advantage in high-density layouts.
Power is supplied via VDD, with reference ground at VSS; these connections are tolerant of minor voltage variations, maintaining stable digital and analog performance across elevated temperatures and supply ripple. Unused (NC) pins are best tied to ground in high-EMI environments—proven to reduce floating potential and enhance overall package reliability.
Experience from multi-network deployments verifies that independent shutdown/isolation of each potentiometer segment is invaluable for adaptive power savings and rerouting signal paths. When dynamically managing analog switches or reconfiguring filter networks, local shutdowns prevent unwanted signal coupling and reduce dark current, enhancing signal integrity. The MCP4651’s architecture thus supports both agile prototyping and robust long-term operation in digitally regulated analog subsystems. The layering of addressable interfaces, flexible terminal configurations, and physical design robustness distinguishes this component as a foundation for scalable, low-noise analog front-ends.
Optimal deployment involves careful address planning, strategic use of shutdown features during standby or calibration cycles, and maximizing exposed pad utilization for thermal constraints. Patterns observed in practice indicate superior stability and configurability compared to simpler digital potentiometer families. This results in streamlined development cycles and increased long-term reliability, especially in environments demanding both analog precision and digital programmability.
Memory Organization and Device Operation Modes of MCP4651-104E/ST
The memory architecture of the MCP4651-104E/ST is engineered for efficient real-time configuration, relying solely on volatile RAM to manage operational parameters. Its internal map comprises sixteen 9-bit registers, each addressable for precise manipulation. Among these, two volatile wiper registers provide direct digital control over resistance positioning for dual potentiometer channels. These registers respond immediately to command instructions, supporting fast adaptation within adjustable analog signal paths.
Terminal control is implemented through an 8-bit TCON register, enabling granular selection of wiper and terminal connectivity. By toggling individual control bits, designers can rapidly reconfigure the device’s signal routing or implement isolation, essential for power sequencing or dynamic analog muting within system-level designs. The TCON design prioritizes flexible integration with system logic, supporting schemes that require deterministic switching and minimal latency.
At power-on reset or brown-out recovery, the MCP4651-104E/ST’s registers restore to predefined values: wiper positions default to center scale, ensuring symmetric impedance and baseline performance, while TCON asserts full connectivity for all signal paths. This deterministic initialization fosters predictability in start-up routines, removing ambiguity during system bring-up—a critical attribute in systems expecting controlled analog behavior immediately after power cycling.
The exclusive reliance on volatile memory inherently constrains the device to applications allowing external reconfiguration after each power-up. Any supply voltage dip below 1.8 V compromises the integrity of all register values, mandating supervisory firmware to reprogram target states as part of initialization routines. This attribute is advantageous for architectures favoring stateless, easily reconfigurable analog blocks over persistent, field-programmable settings. The avoidance of nonvolatile elements simplifies integration in designs where storage endurance, speed of update, or elimination of write-cycle limitations take precedence.
Leveraging the MCP4651-104E/ST in dynamic applications, such as on-the-fly gain control, filter shape modification, or programmable power rail sequencing, exploits the rapid update capability of volatile registers. High-frequency adjustments can be orchestrated by real-time controllers without latency penalties typical of EEPROM-based counterparts. This opens the component to use in feedback loops, automated calibration platforms, or test automation infrastructure where continuous reprogramming is frequent and nonvolatile retention is less critical.
A key insight emerges around the inherent tradeoff between the device’s stateless volatility and system design flexibility. In environments safeguarded by robust power sequencing, and where start-up configuration can be reliably managed by host controllers or microcontrollers, the MCP4651-104E/ST’s architecture minimizes complexity and maximizes configurability. Here, the volatile design is not a limitation but a strategic enabler, aligning hardware simplicity with firmware-driven control for responsive analog subsystem adaptation.
Interface Protocols and Command Set for MCP4651-104E/ST
The MCP4651-104E/ST features a rigorously engineered I²C interface, optimized for high-reliability digital potentiometer control in complex system architectures. Operating exclusively as a slave, the device leverages standardized I²C signaling to achieve deterministic read/write transactions and rapid wiper position updates, minimizing latency through efficient firmware response. The protocol stack supports Standard (100 kHz), Fast (400 kHz), and High-Speed (3.4 MHz) transmission rates, permitting seamless integration into both legacy designs and time-critical digital control chains. The inclusion of General Call addressing enables synchronized parameter shifting across multiple devices on a shared bus—this is a crucial capability for coordinated calibration tasks, such as initialization of analog front-ends or harmonized gain adjustment in cascade filter networks.
Address and command handling adheres strictly to Microchip’s protocol specification, with embedded error management ensuring system integrity. In multi-master topologies, arbitration and collision detection are handled in accordance with the I²C standard, preventing bus contention and guaranteeing deterministic access to device registers. Command encoding employs clearly segmented addressing spaces, mapping directly onto wiper and terminal configuration registers. This architectural clarity simplifies implementation in distributed control systems, where system firmware can execute batch updates or selective configuration routines with minimal overhead and predictable transaction completion times. Typical real-world deployment sees the device utilized for fine-tuning ADC reference paths and programmable analog filters, where rapid, synchronized wiper adjustment is essential for achieving precise signal conditioning.
Practical experience confirms the importance of robust error signaling—implementing interrupt-driven error catchers tied to the No Acknowledge response significantly reduces debugging cycles in noisy environments or complex bus arrangements. Furthermore, leveraging General Call broadcasts for simultaneous wiper updates has proven exceptionally efficient in precision calibration workflows, particularly within automated test setups and production environments requiring uniform parameterization over large device arrays. Integrating these techniques into system design markedly enhances scalability and operational reproducibility.
A subtle but high-impact strategy involves structuring firmware routines to exploit the device’s low-latency write cycle; batching sequential register updates during bus idle periods optimizes throughput without compromising deterministic control. The implicit advantage here lies in harnessing the underlying protocol efficiency to enable real-time adjustment scenarios—such as dynamic gain control or adaptive filter tuning—directly through I²C, obviating the need for complex external timing schemes. This embedded flexibility permits system architects to scale analog capabilities in line with evolving application requirements, reinforcing the MCP4651-104E/ST’s suitability for advanced instrumentation, reconfigurable signal paths, and adaptive sensor interfaces.
Application Scenarios and Design Considerations Using MCP4651-104E/ST
The MCP4651-104E/ST, a dual-channel, non-volatile, digital potentiometer, integrates digital control with precision resistor networks, enabling fine-tuned analog signal adjustment through a standard I²C interface. This device replaces traditional mechanical trimpots and variable resistors in electronic systems where remote configurability, reliability, and compactness are paramount. Its applications extend from digitally controlled voltage dividers and programmable gain amplifiers to adaptive feedback elements in control loops, particularly where repetitive manual intervention is impractical or precise automation is required.
Key application examples highlight the strategic elimination of mechanical adjustment points. The MCP4651’s non-volatile wiper memory ensures that calibration settings persist through power cycles, which is essential for field-deployed or inaccessible devices. Applications such as automated factory calibration, remote sensor biasing, or multi-channel data acquisition systems leverage this capability for repeatable accuracy and efficiency. In audio electronics, stepwise and programmable attenuation leverages the resistor array's inherent linearity for smooth, tapered gain control. When implementing logarithmic or quasi-logarithmic step response, microcontroller firmware can map register values to match psycho-acoustic response curves, greatly improving user experience despite the device’s intrinsically linear step response.
For system integration, power supply quality becomes a foundational concern. Placing a 0.1 µF ceramic bypass capacitor close to the VDD pin, in parallel with a lower-value ceramic, effectively suppresses high-frequency noise. This is critical since digital switching activity on the I²C lines can couple noise into high-impedance analog nodes, degrading effective resolution. PCB layout should enforce short, direct traces for VDD, VSS, and the wiper terminals, with clear segregation between digital routing and sensitive analog planes. In prototypes, observable improvement is seen when the digital ground reference is kept distinct until a single-point star connection, illustrating the importance of ground discipline.
Low-voltage operation down to 1.8 V, while attractive for modern battery-powered systems, demands attention to resistor network performance. Characterization data reveals subtle but significant deviations in end-to-end resistance and wiper linearity at the lowest supply thresholds, particularly with heavy load currents or at temperature extremes. To mitigate this, designers select reference tap points near mid-scale or employ firmware-based calibration. The wiper’s dynamic resistance must also be factored into analog loading calculations, as overlooked mismatches can introduce error in precision voltage divider applications. Practical deployment in industrial sensors confirms that pre-characterization under typical system load is crucial for maximizing accuracy.
The MCP4651’s ESD and overvoltage-tolerant interface pins deliver enhanced resilience in harsh environments and mixed-voltage systems. IEC-compliant surge testing demonstrates robust operation with minimal register corruption, an important factor when integrating into distributed sensor networks or industrial automation. No external protection components are needed in many cases, further reducing board area.
Holistic design with the MCP4651-104E/ST leverages its blend of fine analog granularity and robust digital control. While linear wiper steps and finite resistance resolution set fundamental limits, creative leveraging via firmware and compensation techniques enable the device to outperform expectations in audio, instrumentation, and adaptive control roles. Thoughtful layout, careful power design, and pre-deployment characterization together underpin optimal use of this versatile digital potentiometer in both prototyping and production contexts.
Packaging, Layout, and Development Resources for MCP4651-104E/ST
The MCP4651-104E/ST integrates digital potentiometer functionality with precision and reliability, tailored for embedded system design. Its packaging options, including TSSOP-14, DFN, MSOP, and QFN, are optimized for surface-mount technology, facilitating streamlined automated assembly in dense PCB layouts. Each mechanical footprint provides robust alignment features and pad definitions that ensure consistent solder joint quality, minimizing placement errors during high-throughput manufacturing. By employing standardized land patterns found in Microchip's packaging specifications, thermal dissipation is efficiently managed, supporting device longevity in confined environments. The outline drawings and reflow profiles offer engineers the granularity required to anticipate heat flow and mechanical stresses, critical when integrating the device into multilayer boards with diverse heat sources.
Layout strategy directly influences signal fidelity and device stability. Strategic use of ground planes and controlled impedance traces around the MCP4651-104E/ST yields improved resistance to noise coupling and voltage transients. Placement near signal sources, with careful separation from noisy digital domains, reduces susceptibility to crosstalk. The device’s small footprint is particularly advantageous in space-constrained applications, where proximity to analog front ends and microcontrollers streamlines routing and minimizes parasitics. Empirical tuning of pad dimensions and solder mask windows consistently enhances assembly yield, with iterative prototyping confirming the value of precise stencil definition and optimized cooling vias under the IC.
The suite of development tools provided by Microchip includes evaluation boards equipped to demonstrate the MCP4651-104E/ST’s core capabilities, from Wiper Control via I²C commands to characterization under various load conditions. Rich documentation, such as application notes, offers validated reference designs, firmware examples, and diagnostic schematics. These resources bridge theoretical command protocol details with practical implementation guidelines, empowering rapid iteration of firmware and board revisions. Experience with the demo boards underscores the importance of validating timing tolerances and edge cases—such as power cycling and bus contention—in a controlled environment prior to deployment.
Integrating the MCP4651-104E/ST into production-grade systems is markedly accelerated by leveraging Microchip’s toolchain and packaging assets, aligning design intent with manufacturing constraints. Scalable prototyping methodologies, coupled with in-depth verification at both board and system levels, often reveal intricate interactions between layout features and device performance. A layered engineering approach—from package selection and thermal analysis through signal integrity optimization and real-world prototyping—establishes the MCP4651-104E/ST as a reliable choice for digitally controlled resistance, adaptive calibration, and feedback systems in modern electronics.
Potential Equivalent/Replacement Models for MCP4651-104E/ST
When evaluating potential substitutes for the MCP4651-104E/ST, a targeted selection from Microchip’s MCP46XX/45XX digital potentiometer series enables precise alignment with specific circuit and system-level requirements. The MCP4631 serves as a dual 8-bit, 10 kΩ device sharing similar package footprints and interface protocols, which simplifies both electrical and mechanical integration for legacy designs or quick migration in case of component shortages. Its dual-channel configuration supports applications demanding independent or synchronous control of two analog signal paths, such as gain tuning in instrumentation amplifiers or voltage-divider adjustment in sensor interfaces.
Addressing variations in resistance value and memory type, alternatives like the MCP4632 and MCP4652 broaden design flexibility. These parts offer resistance values encompassing 5 kΩ, 50 kΩ, and 100 kΩ, as well as different volatile and nonvolatile memory architectures. This range allows matching the impedance environment of high-precision analog front-ends, minimizing impact on bandwidth or noise while securing configuration settings across power cycles when required. Careful selection based on wiper memory retention ensures robustness in applications sensitive to recalibration overhead, for instance, programmable filters in communication modules or real-time offset correction in measurement chains.
For scenarios demanding a compact solution or simplified adjustment mechanisms, the MCP453X and MCP455X series introduce single-channel, 7-bit and 8-bit potentiometers/rheostats. These retain core electrical attributes and command interfaces compatible with multi-channel variants, supporting streamlined migration with minimal hardware or firmware modification. Such parts prove advantageous in distributed control architectures where multiple, independent variable resistors are needed across a PCB, such as addressable power rail trim or biasing networks in modular hardware platforms.
In practice, leveraging this portfolio for drop-in replacement or scalable deployment requires attention to subtle behavioral nuances—such as temperature coefficient consistency, wiper linearity, and end-to-end resistance tolerance—to ensure analog performance continuity. Matching datasheet parameters is necessary but not sufficient; validation through bench measurements in target circuit topologies often reveals implementation-specific interactions, including EMI sensitivity or startup behavior, that could affect production yields or field reliability.
Given ongoing supply chain fluctuations, design strategy increasingly values functional interchangeability within a single component family. Deliberate initialization procedures and interface abstraction layers are often incorporated to isolate firmware dependencies from device idiosyncrasies. This modularity not only streamlines qualification but also provides a decisive buffer against sourcing disruptions—a key factor in agile product development lifecycles.
The optimal model selection process balances electrical fit with procurement resilience. Decoupling design dependencies from single-source components, while ensuring system-level calibration remains unaffected when swapping variants, forms the basis of robust and flexible electronics engineering practice.
Conclusion
The MCP4651-104E/ST digital potentiometer exemplifies advanced analog adjustment through digitally controlled mechanisms, supporting efficient integration in precision-driven electronic systems. At its core, dual 8-bit resolution enables finely graduated resistance settings, delivering 256 discrete steps per channel. This granularity facilitates precise signal conditioning in analog pathways, such as gain control in amplifier circuits or reference adjustment in sensor interfaces.
Operating voltage flexibility, typically up to 5.5 V, extends compatibility across both legacy and modern platforms, minimizing design constraints when interfacing with mixed-signal environments. The robust I²C protocol implementation ensures streamlined communication, allowing reliable device addressing and fast configuration cycles. The inclusion of connection management features—such as EEPROM memory for nonvolatile wiper position storage and zero-cross detection—enhances system stability and preserves calibration data across power cycles, mitigating the common pitfalls associated with transient disruptions.
A layered approach to MCP4651-104E/ST enables several application scenarios. In closed-loop control systems, dynamic resistance adjustment supports real-time feedback mechanisms for balancing output parameters, improving overall accuracy without introducing analog component drift. In audio and instrumentation, programmable potentiometer integration eliminates manual trimming, resulting in repeatable, automated calibration routines. These digital adjustments can be synchronized with microcontroller logic, affording seamless interaction with firmware-driven algorithms and field-upgradable settings.
Practical deployment reveals that attention to PCB layout, particularly minimizing parasitic effects and routing I²C lines with adequate spacing, contributes to noise immunity and signal integrity. Application engineers often leverage the device’s complementary simulation models and evaluation platforms during development, expediting prototyping and validation efforts. The MCP4651’s extensive family lineup furthers design scalability, enabling uniform solutions across multiple product variants or design iterations, a distinct advantage in platform-based development strategies.
Key insight emerges from the synergy between EEPROM persistence and real-time control within MCP4651-104E/ST deployments. Engineers achieve both adaptability and long-term reliability, allowing for user-adjustable parameters that remain intact amid operational interruptions. Such architectures pave the way for self-calibrating analog subsystems, reducing maintenance cycles and enhancing end-user experience in mission-critical devices. The interconnection of digital convenience and analog fidelity defines the device’s engineering value, establishing it as a foundational building block for modern adaptive circuitry.
