Product Overview: AT42QT2120-MMHR
The AT42QT2120-MMHR embodies a capacitive touch sensor interface IC optimized for precision and versatility in touch-based control architectures. Built with up to 12 independently configurable channels, it accommodates single-point keys and complex linear or rotary sensors. Its signal acquisition engine employs advanced digital signal processing to achieve high resolution and rapid response, efficiently distinguishing valid user interaction from spurious environmental noise.
Key architectural mechanisms include hardware-supported charge-transfer sensing, automatic drift compensation, and adaptive thresholding. Charge-transfer sensing establishes a sensitive yet robust baseline for detecting minor capacitance variations typical of light, fast touches. The device’s drift compensation algorithm continuously recalibrates touch baselines, countering temperature fluctuations or slow material changes on the overlay, thus maintaining detection consistency across varied environments. Adaptive thresholding dynamically adjusts sensitivity based on signal history, enhancing immunity against electrical noise and false activations—a recurring challenge in complex deployment scenarios such as industrial panels or domestic appliances located near switching power supplies.
Configurability extends the application field. Each input channel allows flexible assignment for keys, slider segments, or wheel positions. Parameters such as sensitivity, detection integrator, and I2C or SPI communication modes are set via a simple serial interface, streamlining prototyping and volume production. These features enable seamless integration into cost- and space-sensitive designs like kitchen appliances, medical instruments, or HVAC control panels, where legacy mechanical buttons introduce long-term reliability concerns and vulnerability to dust and moisture.

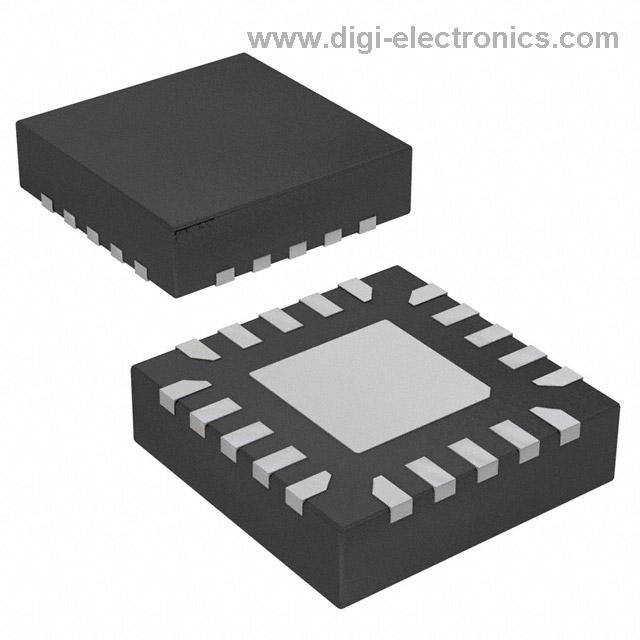

Implementation nuances reveal the device’s maturity. The 20-VQFN package supports dense layouts and straightforward PCB routing, minimizing parasitic effects that can otherwise degrade SNR and increase calibration effort. Practical deployments often combine the AT42QT2120-MMHR with an application MCU over I2C, leveraging interrupt outputs to signal reliable touch events. Ground-return layout strategies and shielded traces further reinforce signal integrity, especially for slider and wheel geometries. The built-in autocalibration reduces field maintenance, a significant advantage for distributed systems or products with limited user access.
An observed advantage is the capability for simultaneous multi-key detection with minimal cross-interference. This property not only accelerates user interactions in keypad or GUI navigation but also opens up gesture recognition paths, expanding the IC’s role beyond passive button replacement toward richer human-machine interactions. Strategic selection of overlay materials and stack-up, tuned in conjunction with the device’s firmware parameters, optimizes both sensitivity and durability across different product categories.
AT42QT2120-MMHR’s design exemplifies a well-balanced approach between configurability and out-of-the-box reliability. Its modular architecture and robust EMC performance make it an attractive platform for next-generation touch controllers, especially where regulatory compliance and long-term operational stability are paramount. By streamlining touch interface development and reducing system complexity, the device accelerates time-to-market and ensures future-proof scalability for evolving user interface paradigms.
Key Features and Architecture of AT42QT2120-MMHR
The AT42QT2120-MMHR is engineered around Microchip’s QTouchADC charge-transfer principle, which underpins robust and precise capacitive sensing. This architecture leverages high-resolution digital signal acquisition, balancing sensitivity and immunity to noise through proprietary algorithms that adapt to changing environmental and application conditions. The internal charge-transfer measurement cycles are tightly synchronized and digitally processed, extracting reliable touch data with minimal parasitic influence, even in electrically noisy or variable contexts such as industrial control panels or consumer interfaces exposed to humidity.
The system-on-chip structure targets complete integration by embedding all essential signal processing. By eliminating the need for external sampling capacitors, the device streamlines PCB routing and accelerates development cycles—this reduction in external components also mitigates manufacturing variability and failure rates. Each channel supports programmable thresholds and sensitivity parameters accessible via I²C, allowing fine-tuning for diverse overlay materials and thicknesses. This flexibility enables agile adaptation to end-user configuration and facilitates iterative design based on test results, such as optimizing slider linearity or refining proximity detection in wearables.
Integrated proximity sensing extends interaction possibilities, offering early wake-up functionality or gesture initiation with minimal power consumption. The inclusion of a dedicated guard channel for false-touch suppression isolates active sensing areas, crucial for applications requiring high reliability such as automotive consoles or embedded medical controls. Developers can configure the guard to suppress ambient or unintentional touches, preventing erratic behavior under high moisture or when the operator wears gloves.
Internal functions—self-calibration, drift compensation, and advanced noise filtering—ensure stable long-term operation. The device continuously recalibrates baselines to counteract environmental drift, including temperature fluctuations or surface contamination. Experience demonstrates that these features markedly reduce field maintenance, especially in deployments where recalibration is logistically difficult.
Output options, such as direct drive for indicator LEDs or control signals, further simplify application circuits. This reduces MCU workload and wiring complexity, supporting streamlined assembly and more compact enclosures. The ability to multiplex up to 12 keys—either as discrete buttons or combined with a slider/wheel—provides versatile UI options for both touch-enabled input and dynamic control surfaces.
Optimization in real-world scenarios often hinges on balancing sensitivity against spurious activation. Adaptive tuning, made possible by real-time parameter adjustment over I²C, allows engineers to maintain consistent user experience across units and batches. Deployments in environments where noise immunity is paramount benefit from the advanced filtering mechanisms embedded in the firmware, surpassing traditional analog approaches in resilience.
A key architectural insight is that high integration and configurability do not compromise measurement fidelity; rather, they enable robust scaling from basic button panels to multi-touch interfaces with nuanced gesture recognition. The AT42QT2120-MMHR stands out by abstracting complexity, empowering rapid deployment and reliable operation in capacitive touch applications across varied sectors.
Operating Modes of AT42QT2120-MMHR
The AT42QT2120-MMHR employs two distinct operating modes—comms (I²C) mode and standalone mode—each tailored for specific integration requirements within capacitive touch control systems.
Comms mode leverages a high-speed 400 kHz I²C interface, establishing a robust link with a host MCU. This connection enables full programmability across all device parameters. Engineers gain granular control over sensitivity thresholds, allowing adaptation to a wide range of touch panel materials and thicknesses. Feature configuration extends to key grouping, power-saving intervals, and activation of advanced capabilities such as the guard channel for external noise rejection and Adjacent Key Suppression (AKS®) to minimize false triggers in high-density layouts. The flexibility in assigning up to 10 channels as general-purpose outputs also facilitates real-time feedback, status signaling, or coordinated device control. Integration patterns often involve dynamic reconfiguration, where channel settings are adapted on-the-fly in response to operating conditions, substantially improving touch reliability and user interaction in complex environments, including home appliances and interactive kiosks.
Standalone mode, by contrast, emphasizes simplicity and deterministic behavior. All configuration parameters are preset at design time via hardware strapping or firmware loading, eliminating the need for host intervention post-deployment. This mode supports up to five dedicated touch keys, with each key’s digital output mapped directly to OUT pins for immediate interfacing with control logic or indicator circuitry. Automatic allocation of guard and proximity channels further reduces engineering effort, streamlining electromagnetic compatibility measures and environmental sensitivity calibration. Standalone operation aligns well with applications where resource-constrained processors or limited board space preclude the use of external configuration protocols—examples include battery-powered control knobs or compact user interfaces in consumer electronics. Experience has shown that hard-wired configuration enhances reliability and startup speed, notably in safety-critical or always-on devices, by reducing sources of misconfiguration and initialization delay.
From a design perspective, the selection between comms and standalone modes depends on application priorities: comms mode maximizes system adaptability and supports rich user interface strategies, while standalone mode minimizes system overhead and integration complexity. Furthermore, close attention should be paid to grounding strategies and PCB layout, as optimal sensor performance in both modes hinges on careful signal routing and noise isolation. A refined understanding of the device’s debounce logic, channel cross-talk mitigation, and environmental drift compensation mechanisms allows for the implementation of robust, production-ready touch solutions tailored to specific use cases. Optimal leverage of AT42QT2120-MMHR’s dual-mode architecture goes beyond basic pinout—system-level co-design with firmware and hardware ensures touch interfaces that are both reliable and responsive across diverse application domains.
Capacitive Key, Slider, and Wheel Capabilities of AT42QT2120-MMHR
The AT42QT2120-MMHR integrates advanced capacitive sensing capabilities, offering significant design latitude for interface engineers. Its adaptable electrode architecture supports a wide spectrum of input modalities—keys, sliders, and wheels—across diverse substrate options such as FR-4, CEM-1, flexible circuits, PET, and glass. The IC’s signal conditioning accommodates both simple and complex geometries, facilitating custom key shapes while effectively compensating for different dielectric environments. Panel thickness support is a notable feature: reliable key response is sustained even with overlays up to 15 mm glass or 10 mm plastic, a requirement often encountered in public kiosks and industrial enclosures.
Spatial layout optimization is possible due to a recommended minimum key spacing of 6 mm, balancing crosstalk mitigation with ergonomic design constraints. Typical key dimensions of 5 mm x 5 mm and above can be adjusted to fit application-specific user interface requirements, from compact remote controls to expansive control panels. The signal processing engine automatically adapts sensitivity to overlay thickness and material, minimizing the calibration effort and enhancing manufacturability across product variants.
Slider and wheel functions leverage comms mode for seamless multi-channel grouping. Configurations such as a 50–100 mm by 12 mm slider or 30–50 mm diameter wheel employ three sense channels, enabling high-resolution touch localization through spatial interpolation algorithms. The IC outputs normalized position codes (0–255), facilitating straightforward integration with host software for gesture recognition, volume adjustment, or navigation input. Inter-channel noise suppression and position smoothing are implemented within the device, ensuring stable operation even in electrically noisy environments. Iterative build cycles have shown that labeling and surface patterning further influence finger-tracking performance; using subtle textures or contrast near the electrode region can boost positional accuracy and user confidence.
Proximity detection enhances system interactivity, allowing interfaces to respond before direct contact. The AT42QT2120-MMHR’s proximity mode increases detection range, particularly on glass overlays, and is valuable for touchless wakeup, anti-vandal activation, or hygiene-driven access points. Logical separation of touch and proximity thresholds within firmware prevents false activation while remaining responsive, which has proven effective in both automotive and industrial contexts where unintended operation due to contaminants remains a risk.
In practice, optimizing the electrode shape for capacitive strength and noise immunity delivers appreciable gains; elliptical or irregular contours, paired with strategic ground placement, improve signal-to-noise ratios without complicating PCB assembly. The device’s dynamic recalibration mechanism maintains long-term accuracy, accommodating wear, aging, and environmental shifts—a critical requirement as interface reliability expectations rise.
A central insight drawn from deployment is that overall system reliability is not solely determined by the IC but arises from holistic design: careful substrate selection, overlay adhesion, signal routing, and enclosure grounding combine to exploit the full potential of the AT42QT2120-MMHR. By harmonizing these elements, capacitive interfaces can achieve both aesthetic flexibility and robust functionality across demanding market segments.
Signal Processing, Noise Immunity, and Adjacent Key Suppression in AT42QT2120-MMHR
Signal processing in capacitive touch applications demands precision and repeatability under unpredictable conditions. The AT42QT2120-MMHR achieves a high degree of robustness through a layered approach, beginning at the physical signal interface and extending to firmware-level intelligent behaviors. Its spread-spectrum burst modulation is foundational to radio frequency noise mitigation; rapidly varying the excitation frequency disperses potential interference across a broad bandwidth, effectively lowering susceptibility without sacrificing sensitivity. This technique also minimizes electromagnetic emissions, supporting regulatory compliance in constrained environments.
Detection integrators function as temporal filters, requiring a preset sequence of valid measurements before registering an activation event. This strategy reduces sensitivity to transient noise spikes and errant touches, such as those induced by ESD events or fleeting contact. Observed in field deployments, tuning integrator depth can delicately balance between response time and false event rejection, especially when operating close to disruptive industrial equipment or high-impedance layouts.
Drift compensation is essential for maintaining stable baseline references across fluctuating environmental parameters—temperature shifts, humidity variations, or voltage deviations. The AT42QT2120-MMHR’s adaptive algorithms dynamically recalibrate offsets, negating slow changes in capacitance and obviating manual recalibration cycles. Combined with periodic self-calibration routines, the solution continuously maintains discriminative power, preventing the accumulation of error that would otherwise degrade sensing fidelity.
Adjacent Key Suppression (AKS) is a critical enabling technology for high-density key matrix implementations. In proximity scenarios—such as compact UI panels or multi-function modules—touch areas may overlap, risking ambiguous input. AKS segments keys into logical groups and arbitrates among simultaneous activations, employing statistical analysis of signal prominence to permit only the strongest touch in a region. This preserves reliability in cases where user input may span near or partially overlapping keys, a challenge regularly observed in design iterations involving small form factors.
Threshold hysteresis introduces a mechanism to stabilize key activation recognition. By requiring a greater signal change for state reversal, the system avoids oscillation at the margin of activation, which can occur due to minute fluctuations. This measure ensures deliberate state transitions, reinforcing user confidence even in the presence of minor environmental noise. During empirical validation, hysteresis settings have proved critical for maintaining clear input boundaries, particularly in applications subjected to vibration or airflow.
Guard channel implementation further refines touch discrimination, providing a unique pathway for rejecting whole-hand or object-induced false activations when multiple channels are covered simultaneously. By reserving dedicated traces or software channels for guard detection, the controller can distinguish intentional touch from blanket interference, an issue most salient in access control surfaces and shared interfaces. Sophisticated guard logic helps minimize ghosting and enhance overall application safety.
Integrating these features yields a multi-tiered defense against noise while supporting precise and unambiguous user interaction. Effectively, the AT42QT2120-MMHR exemplifies the principle that robust touch sensing is achieved not by a single technology but through the convergence of hardware analog processing and intelligent digital filtering. Careful adjustment of filtering parameters and channel groupings during development allows substantial optimization for application-specific requirements, with field feedback validating the necessity for layered signal integrity and false activation prevention strategies. The architecture favors adaptability, making it suitable for rapidly evolving interface designs, where resilience and accuracy are paramount.
Output Lines and I²C Interface in AT42QT2120-MMHR
The AT42QT2120-MMHR offers notable output configurability, essential for integrating capacitive touch interfaces into diverse applications. In communications mode, up to 10 channels transition seamlessly into general-purpose outputs. Typical use cases involve driving visual indicators, relays, or supplementary logic circuits. Each output channel features individually assigned functions, maximizing utility in complex signaling or multiplexed control schemes. Electrical behavior is anchored by open-drain type outputs, which help prevent contention in mixed-voltage environments and simplify wired-OR connections—a significant advantage in cost-driven or space-constrained designs. The CHANGE output operates as an asynchronous event notifier, assertively flagging touch or status transitions. This design enables external microcontrollers to poll the device efficiently, reducing both interrupt resource demand and unnecessary bus traffic, yielding lower average power consumption in responsive systems.
In standalone mode, output mapping becomes deterministic—each channel directly mirrors sensor state to a hard-wired output. This facilitates straightforward driving of LEDs for instant tactile feedback or relays in isolated subsystems, reducing the need for intervention from external controllers. Isolation and predictability are enhanced by this hardware mapping, ensuring consistent behavior in safety-critical or time-sensitive applications.
I²C Protocol Integration and Register Access
I²C communication is anchored by the device's fixed address (0x1C), eliminating ambiguity in multi-device networks and simplifying software initialization. The structured register map distinguishes the AT42QT2120, granting granular access for both read and write operations. Configuration registers expose parameters such as electrode sensitivity, touch detection thresholds, and channel enablement states. Adjusting these values allows iterative tuning with minimal hardware revisions, essential when environmental and mechanical variables demand rapid optimization.
Status bytes and event registers facilitate efficient host interaction—engineers can poll for channel-specific touch events or assess overall device health without exhaustive queries. Drift compensation parameters, accessible at runtime, mitigate environmental effects such as temperature and humidity, which commonly induce baseline shifts in capacitive sensors. System validation and field updates become streamlined, as configuration adjustments propagate immediately over I²C without requiring device resets.
Design-In Practices and Implementation Insights
Practical system integration highlights the criticality of decoupling logic power supplies when using open-drain outputs in shared signalling domains, especially in cross-voltage architectures. Careful implementation of pull-up resistors matched to signal timing prevents signal integrity issues and ensures reliable state transitions. Empirical setups reveal that aligning I²C access patterns with the CHANGE line significantly reduces latency between touch acquisition and host response, avoiding missed detection under rapid input conditions.
Leveraging dynamic register control, adaptive sensitivity thresholds can be applied for multi-environment devices. For instance, touch pads exposed to industrial noise benefit from periodic in-field recalibration, achievable via I²C scripting during maintenance cycles. The deterministic channel mapping in standalone mode is exploited in high-availability appliances, where control reliability outweighs configuration flexibility; conversely, comms mode enhances adaptive interface behavior in smart controls.
Intrinsic to this architecture is the trade-off between responsiveness and power draw. Open-drain signaling and intelligent polling, coordinated through CHANGE line state monitoring, frame a low-power yet highly responsive interaction model. This enables rapid wake-up times and event recognition without resorting to continuous high-rate polling, a crucial design advantage for battery-powered and embedded touch solutions. The layered access to control registers and direct outputs ensures adoption across both static hardware-centric designs and software-adaptive systems, giving engineers the tools for robust interface design with minimal compromise.
System Design Considerations for AT42QT2120-MMHR
System integration of the AT42QT2120-MMHR demands adherence to advanced principles in capacitive touch sensing, reflecting both the device’s sensitivity and the influence of the surrounding electrical environment. A foundational aspect involves series resistors, optimally sized between 4.7 kΩ and 20 kΩ—expandable up to 100 kΩ depending on the anticipated fault surges or electromagnetic landscape—to form an initial defense layer against ESD events and persistent RF interference. These components modulate incoming transient currents while simultaneously operating within the response-time constraints dictated by capacitive scan cycles, preserving sensor fidelity under dynamic conditions.
Physical separation is critical when routing sense traces, especially in systems featuring frequent digital switching such as multiplexed LED arrays or high-speed serial interfaces. Empirical analysis reveals that close proximity between high-edge-rate digital signals and sensor lines induces parasitic coupling, manifesting as erratic touch detection or “ghost” inputs. Strategically engineering PCB topology—prioritizing orthogonal trace routing, controlled impedance structures, and robust ground planes—mitigates capacitive crosstalk and increases immunity to unpredictable noise sources.
Power delivery architecture plays a decisive role in signaling integrity. The presence of a local 0.1 μF ceramic bypass capacitor at the controller’s supply pin addresses high-frequency transients and decouples momentary load fluctuations. This configuration should be complemented by a secondary reservoir capacitor (e.g., 1–10 μF) placed within a short physical distance, targeting mid-to-low frequency ripple mitigation. In multi-device systems, shared LDO regulators or noisy voltage rails—particularly those subject to load variations from displays or motors—can inject deleterious ripple onto the analog supply, thus requiring additional filtering stages or independent regulation channels to maintain a stable analog ground reference.
The integrity of the PCB substrate after rework directly affects capacitive sensing reliability. Ionic contaminants from cleaning or incomplete flux removal create unintended conductive paths, leading to sensor instability and drift over time. Procedures emphasizing post-solder wash, ultrasonic cleaning in deionized water, and controlled drying cycles have demonstrated measurable improvements in long-term touch performance.
I²C communication reliability hinges on fine-tuning pull-up resistors according to trace length, bus capacitance, and signaling speed. Conventionally, pull-up values span 1 kΩ to 10 kΩ. Excessively weak pull-ups reduce margin for noise, while overly strong resistors can impair rise time at higher speeds. Precise matching of these components—a process guided by timing budget and layout constraints—optimizes both responsiveness and immunity to external electrical disturbances.
Drawing from iterative design cycles, the most resilient AT42QT2120-MMHR implementations consistently embrace an architectural hierarchy balancing electrical isolation, signal conditioning, and mechanical cleanliness. The interplay of these elements illustrates that capacitive touch reliability is not linear but emerges from the cumulative management of subtle and overt system interactions. An often-overlooked insight: early-stage simulation of coupled noise paths, combined with disciplined layout reviews and real-world validation, yields rapid convergence toward robust solutions, minimizing late-stage troubleshooting and field failures. This approach, reinforcing signal integrity at every interface, ensures the capacitive sensor delivers precise, user-responsive functionality across diverse deployment environments.
Electrical and Mechanical Specifications of AT42QT2120-MMHR
Electrical and mechanical design for the AT42QT2120-MMHR prioritizes adaptability in compact capacitive sensing applications. The device supports a supply range between 1.8V and 5.5V, accommodating diverse rail voltages typical in modern embedded architectures, reducing the need for peripheral regulation circuitry. This flexibility simplifies integration into battery-operated devices, wearables, and industrial panels, where both minimum and maximum voltage thresholds can vary depending on use case and power source constraints.
Power management functions are integral to the device’s operation. Current consumption correlates directly to the number of active capacitive keys; enabling more inputs increases sampling cycles and overall draw. The chip incorporates adjustable low-power modes, controlled by internal registers, allowing aggressive minimization of consumption during idle periods. Sleep intervals can be extended for less latency-sensitive applications, with register-level granularity providing precise control over the balance between responsiveness and energy efficiency. In deployment, dynamic adjustment of power settings based on user activity often yields optimal compromise, maximizing device autonomy without sacrificing user experience.
Package selection is another critical variable impacting board design and mechanical assembly. The AT42QT2120-MMHR is manufactured in SOIC, TSSOP, and a 3 x 3 mm VQFN package, all compliant with RoHS directives to align with global regulatory requirements. The VQFN variant delivers the smallest footprint, suiting it for high-density layouts where PCB real estate is at a premium, such as wearables or handheld controllers. Attention to JEDEC mounting criteria and manufacturer-specified land patterns is crucial. A consistent, thermally sound solder joint, as achieved in reflow profiles conforming to recommendations, underpins field reliability, especially in harsh thermal or vibration environments. For instance, in vibration-prone installations, the mechanical integrity of the VQFN variant depends as much on the solder fillet and pad design as on package geometry, underscoring the interplay between mechanical and electrical domains in system-level reliability.
Deploying the AT42QT2120-MMHR benefits from a layered engineering approach—beginning with supply compatibility and moving through power optimization to footprint selection and board-level robustness. Practices such as in-system programming of power profiles during commissioning, and verifying solder reflow parameters on pilot runs before volume production, form a pragmatic route to minimizing both field failures and lifecycle cost. A deep understanding of both the electrical configurability and the constraints imposed by package choice fundamentally enhances deployment outcomes, especially as final application requirements evolve or expand.
Potential Equivalent/Replacement Models
When assessing alternatives to the AT42QT2120-MMHR capacitive touch controller, a systematic review of interface, function, and package compatibility is essential. Within Microchip’s QTouch portfolio, the AT42QT2160 stands out, offering expanded 16-channel support and retaining core functionalities such as configurable touch sensitivity, proximity detection, and slider/wheel implementations. Device selection criteria, however, must extend beyond mere channel count to subtler features such as the presence and flexibility of Adjacent Key Suppression (AKS) algorithms, which mitigate accidental multi-touch activations—crucial in dense key matrices.
Engineering decision-making often revolves around constraints imposed by physical layout, I/O availability, and user experience objectives. The AT42QT2120-XU/SU variants, differentiated primarily by package type, facilitate board-level adaptation in scenarios where space and form factor predominate. In high-density assemblies (e.g., wearable interfaces), leveraging compact packages can unlock better routing strategies and EMI resilience. For applications requiring migration between platforms, attention to pinout consistency and register compatibility simplifies firmware reuse and validation cycles.
Comparative analysis with Silicon Labs’ CAP12xx series reveals divergences in protocol support—such as I²C versus SPI—and configuration granularity. CAP12xx devices may offer tailored solutions where the emphasis is on low-power consumption or stringent EMC requirements, yet QTouch solutions tend to provide richer slider/wheel library integration and streamlined proximity sensor setup. Selection pressure in industrial controls and consumer appliances often necessitates rapid prototyping and field configuration; controllers supporting in-system programmability and robust noise immunity deliver clear advantages.
Empirical evaluation across several prototypes demonstrates the advantages of controller models featuring dynamic recalibration and programmable detection thresholds, particularly in environments with fluctuating humidity or surface contaminants. Focusing on configurability aligns well with iterative UI refinement cycles, minimizing redesign overhead while accommodating evolving user behavior.
A nuanced approach involves mapping functional requirements against firmware maturity and third-party ecosystem support. Recognizing the trade-offs in integration complexity often creates opportunities for increased reliability and reduced time-to-market. Implementing rigorous early-stage cross-compatibility testing between candidate devices uncovers subtle timing discrepancies and configuration limitations, streamlining the path toward robust production deployment.
The most effective strategy encompasses an assessment along three layers: architectural feature matching, physical footprint accommodation, and system-level configurability. By integrating advanced touch algorithms and flexible communication options into the selection matrix, the resulting design not only meets specification but also supports future scalability and adaptation. This integrated mindset, prioritizing modularity and empirical validation, delivers durable solutions in capacitive sensing technology.
Conclusion
The AT42QT2120-MMHR establishes an advanced platform for capacitive touch sensing by integrating 12 channels into a compact package. Each channel supports independent touch keys, sliders, or wheels, leveraging sophisticated signal processing algorithms that adaptively filter environmental noise and compensate for variable sensitivity across interfaces. The chip's architecture incorporates dynamic auto-calibration, enabling stable touch detection under fluctuating conditions such as humidity shifts or EMI sources, a critical factor in high-density assemblies and industrial environments.
The device operates seamlessly in both dual-mode configurations: as a fully integrated circuit managed by a host MCU via an I2C interface, and as a simple stand-alone sensor with direct output pins for minimalistic applications. This layered operational flexibility accelerates design cycles by allowing engineers to match the IC's capabilities to the complexity of their system, ranging from smart home panels to rugged machinery controls. The interface logic decouples touch acquisition from output formatting, which streamlines HMI design by minimizing external code and hardware dependencies.
Noise immunity is elevated through the combination of frequency-hopping techniques and spread-spectrum acquisition, supporting reliable gesture recognition even near switching power supplies or RF transmitters. Low active and idle power consumption allow the AT42QT2120-MMHR to be directly integrated into battery-operated devices with extended lifecycles, while wake-on-touch functionality ensures responsiveness without sacrificing efficiency. Output configurability spans open-drain digital signals, PWM modulation, and event interrupts, empowering designers to implement applications requiring tactile feedback, LED dimming, or multi-zone activation with minimal overhead.
Experience demonstrates that precise PCB layout—manageable ground planes, optimal routing of sensor traces, and strategic shielding—is integral to maximizing sensitivity and minimizing false triggers. The software-configurable parameters, including threshold adjustment and debounce timing, grant granular control over the user experience and system reliability. Tight integration with the host firmware or logic allows for real-time adaptive tuning, supporting rapid iteration during development and versioning—an often-overlooked lever for accelerating product validation cycles.
The architecture of the AT42QT2120-MMHR points toward a broader shift in HMI design, where modular signal processing and configurable output logic reduce complexity and foster interoperability across diverse platforms. Its application spectrum is expanding into not only traditional consumer products but also emerging fields like industrial IoT, medical instrumentation, and wearables, where touch interfaces must balance sensitivity, robustness, and low profile integration. Strategic exploitation of the IC’s internal processing and external signaling capabilities determines solution quality and deployment agility, reaffirming the value of thorough system-level understanding during design and integration.
