Product Overview: Infineon CY62177EV30LL-55ZXI SRAM
Infineon’s CY62177EV30LL-55ZXI SRAM exemplifies the integration of advanced memory architecture and low-power circuit design for embedded platforms requiring sustained reliability and rapid data access. At its core, this asynchronous static RAM leverages refined CMOS process technology to achieve a potent balance between speed and energy efficiency. With a substantial 32Mb capacity, selectable in 2M × 16 or 4M × 8 organizations, the device offers versatile interfacing for designs ranging from wide data throughput requirements to byte-oriented legacy subsystems.
The asynchronous access mechanism ensures immediate responsiveness; read and write operations are decoupled from clock constraints, leading to predictable, low-latency cycles. This property is particularly advantageous for time-critical control systems or portable instruments where deterministic operation is essential. The SRAM’s static nature eliminates the need for periodic refresh cycles, inherently simplifying system design and reducing board-level power budgets, especially vital in battery-dependent environments.
A rigorous approach to power management is evident in the CY62177EV30LL-55ZXI’s ultra-low standby and active current characteristics. Through deep subthreshold process optimizations and minimization of leakage paths, the device supports extended standby operation—common in cellular modules and remote sensing platforms—without compromising memory integrity. Practical deployment often involves leveraging its low Vcc operating range to optimize battery lifespan in fielded devices exposed to variable supply conditions, such as industrial sensor nodes or handheld testers. In high-volume deployments, consistent low-power performance can translate to significant operational cost savings across entire fleets.

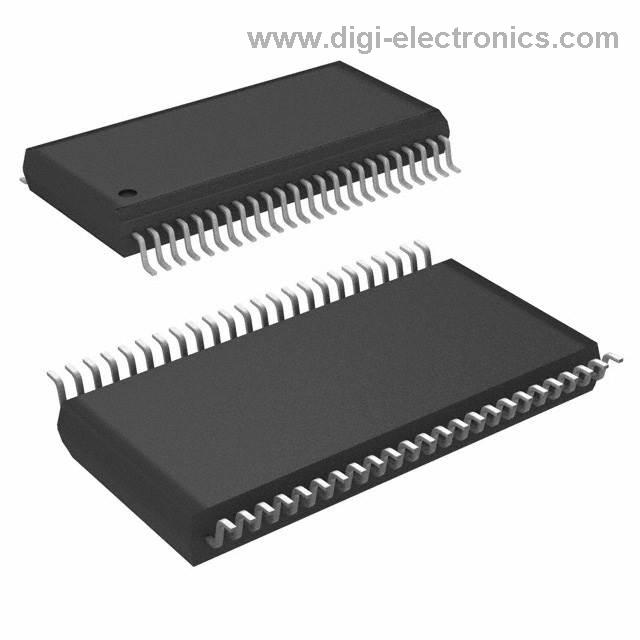

Physical package choices, including 48-pin TSOP I and 48-ball FBGA, address constraints of miniaturized PCBs. The flat, surface-mount footprint integrates seamlessly within compact layouts while ensuring robust signal integrity during high-speed transactions. Assembly and final inspection experience recognizes these packages for their resilience under varied temperature profiles and vibration, supporting endurance-critical applications like mobile terminals and factory automation controllers.
Application scenarios benefit from both the memory’s architecture and form factor. In cellular devices, the fast-access, low-power SRAM buffers baseband data amidst frequent sleep/wake cycles, maintaining call quality and reducing thermal profiles. Industrial controllers take advantage of predictable cycle timing to stabilize I/O synchronization, avoiding propagation delays inherent to clocked memory subsystems. In portable measurement equipment, designers can allocate large data caches capable of instantaneous access, crucial during rapid sampling and edge decision logic.
The modular organization scheme presents meaningful flexibility. Systems requiring parallel data handling, such as DSP solutions or multi-channel sensor interfaces, typically adopt the wide 16-bit access to minimize bus transactions. Alternatively, legacy designs or constrained address spaces exploit the 8-bit organizational mode, maintaining backward compatibility with minimal firmware adjustment.
The CY62177EV30LL-55ZXI’s design represents an optimal convergence of power stewardship and data throughput, tailored for contemporary embedded challenges. Incorporating it into a system architecture imparts significant enhancements to reliability, deployment longevity, and performance headroom in both legacy and leading-edge applications. The principle insight is that in domains where operational predictability, low quiescent consumption, and modular integration are non-negotiable, this SRAM variant sets a benchmark for future-proof memory selection.
Key Features of CY62177EV30LL-55ZXI SRAM
The CY62177EV30LL-55ZXI SRAM is optimized to address contemporary requirements for volatile memory with a focus on capacity, efficiency, and configurable interfacing. Its 32Mb storage is physically segmented into either 2M × 16 or 4M × 8, selectable by the BYTE pin, enabling system architects to tailor data buses for diverse protocols or legacy compatibility. The device’s architecture supports rapid data retrieval, with a 55 ns access time benchmarked across industrial environments, ensuring deterministic performance suitable for latency-sensitive datapaths in embedded and industrial automation controllers.
Voltage compatibility spans 2.2V to 3.6V, which facilitates seamless integration in both new designs and upgrades of existing infrastructures where voltage rails may vary. This flexibility is particularly valuable when transitioning platforms or retrofitting security or IoT appliances, mitigating the need for additional level-shifting circuitry and reducing BOM complexity.
Regarding energy consumption, the CY62177EV30LL-55ZXI sets a notable standard. With standby currents typically at 3 µA and capped at 25 µA, the device permits extended durations in low-power states without compromising memory integrity. Such metrics are critical in power-constrained applications—portable instrumentation, remote sensing nodes, and wearable medical devices—where battery longevity directly correlates with operational continuity. The active current, measured at a mere 10 mA at 1 MHz, further exemplifies its suitability for continuous, low-burden refresh cycles in event-driven systems.
The built-in automatic power-down circuitry operates transparently, shifting the device into energy-saving modes without requiring firmware intervention. This feature encourages the implementation of aggressive power management strategies in real-time operating systems (RTOS), where sleeping routines and context switching can now occur with minimal software overhead, thereby reducing system complexity and debug cycles.
Compliance with RoHS3 and REACH ensures deployment viability in regulated markets and aligns with modern procurement requirements for toxicity and lifecycle considerations. This footprint makes the CY62177EV30LL-55ZXI strategic for global scaling projects or certification-driven sectors such as automotive or consumer electronics.
Empirical evidence demonstrates the effectiveness of deploying this SRAM in battery-powered logic analyzers and handheld data loggers. Designers consistently cite its robust voltage tolerance and low standby draw as instrumental in meeting multi-day operational targets while maintaining system responsiveness during sporadic user interactions. The practical adoption pattern confirms a core observation: SRAM devices engineered with granular configurability and autonomous power-saving features inherently streamline embedded system design, delivering real-world advantages in reliability, maintenance, and operational cost.
The distinctive combination of configurable width, rapid access, and ultra-low power lays the foundation for next-generation memory subsystems, where increasing functional density must not entail a proportional energy penalty. This approach is indispensable for scaling IoT endpoints, edge-computation devices, and context-aware control units that demand responsiveness without sacrificing operational efficiency.
Functional Architecture and Operation of CY62177EV30LL-55ZXI
The CY62177EV30LL-55ZXI is designed around a low-power CMOS architecture, integrating sophisticated row and column decoders that optimize cell addressing and data integrity under rapid asynchronous operation. Sense amplifiers embedded within each column support fast, noise-immune data retrieval while advanced data-in drivers stabilize transitions during writes, ensuring signal robustness on the I/O bus. This level of integration reduces latency and enhances throughput, making the device suitable for high-performance embedded environments where deterministic timing is essential.
Interfacing and memory expansion are facilitated by dual chip enable inputs (CE1, CE2), which permit flexible system-level control and seamless cascaded configurations. These enable effective partitioning in multi-bank memory architectures, minimizing selection conflicts and supporting complex expansion requirements. Output enable (OE) gates the data out path, coordinating precise read timing with minimal propagation delay. Byte High Enable (BHE) and Byte Low Enable (BLE) signals further extend bus adaptability, allowing optimized integration with both 8-bit and 16-bit data buses without introducing external glue logic. This versatility in bus management simplifies PCB routing and shortens design cycles, particularly when transitioning between legacy and modern system platforms. The BYTE pin in TSOP I configurations provides dynamic control over data width, optimizing both bandwidth and resource utilization in applications ranging from microcontroller interfacing to FPGA-based memory-mapped designs.
Read and write transactions adhere to well-established asynchronous SRAM protocols. During a read, the control input states—CE1 asserted low, CE2 high, OE low, WE high—activate the address decoders and sense amplifiers while disabling write circuits, achieving reliable and non-overlapping access to stored data. Write operations commence under CE1 low, CE2 high, and WE low, latching inputs via data-in drivers directly into the cell matrix. These state-combined mechanisms mitigate bus contention and facilitate deterministic access cycles, critical when designing systems requiring hardware-level reliability and rapid data turnaround.
Application scenarios benefit from strict adherence to package guidelines. Specific pins, such as Do Not Use (DNU), are intentionally isolated; ignoring these design constraints can introduce unpredictable capacitance or crosstalk, potentially degrading overall stability. Distributed control of enable pins and byte-select signals enables developers to fine-tune memory mapping for application-specific workloads, such as real-time data logging in automotive ECUs or instantaneous access requirements in industrial automation controllers.
A noteworthy insight emerges from evaluating the architecture’s systematic separation of address decoding and data manipulation functions. This partitioning not only streamlines state sequencing but also affords superior noise isolation, contributing to enhanced endurance in electrically challenging environments. Deploying board-level power filtering and adhering to detailed pinout recommendations have shown to further enhance operational margins, especially in temperature-sensitive installations. The inherent flexibility in bus width and control orientation supports both prototyping agility and long-term deployment efficiency, yielding a component well-suited to evolving embedded system landscapes.
Electrical and Thermal Characteristics of CY62177EV30LL-55ZXI
Electrical and thermal attributes of the CY62177EV30LL-55ZXI are tightly engineered for stability and signal integrity within stringent industrial environments. Operating across a -40°C to +85°C temperature range, this SRAM achieves reliable function under temperature extremes encountered in field deployments or high-density enclosures. The supply voltage range of 2.2V to 3.6V addresses both power-sensitive and legacy systems, facilitating drop-in compatibility in mixed-voltage designs.
Output staging leverages CMOS logic levels, presenting a VOH of 2.0V at the minimum supply and a VOL below 0.4V. These parameters ensure rapid switching and noise immunity on shared buses, even in systems with degraded supply margins or long PCB traces. The capacity to sustain valid output levels down to the regulatory edge of Vcc minimizes timing violations that might originate during brownout or aggressive power gating. Attention to bidirectional compatibility is manifest in the symmetry of the I/O structure, facilitating seamless integration with varying logic families.
Input and output capacitance, each capped at 15 pF, reinforces high-frequency operation. This ceiling is crucial for achieving specified access times and keeps RC time constants in check, especially as bus lengths increase or system frequencies surpass tens of megahertz. In practical backplane scenarios, where numerous loads aggregate, total capacitive budget is routinely challenged; low device-level capacitance sustains clean signal transitions and maximizes resilience against data eye closure.
Thermal management is inherent in the device’s physical design. The TSOP I package with a junction-to-ambient resistance of 54°C/W enables efficient heat dispersal, even in densely packed boards with limited airflow. Performance in thermal characterization translates directly to predictable long-term reliability; chronic overheating is a principal failure mechanism in memory subsystems. In practice, the device withstands pulse heating events during power surges and remains within rated limits through passive dissipation. On multilayer boards with careful thermal via placement, measured junction temperatures consistently remain below recommended derating thresholds, allowing for safe parallel bank stacking or operation in sealed logic boxes.
An important design insight is the balancing act between pin capacitance and output drive. In simulation-driven layout iterations, minimizing trace lengths and using controlled impedance paths yield tangible improvements in timing closure when paired with this memory’s electrical profile. This creates a scalable memory platform that serves not just in traditional PLCs and industrial controllers, but also in newer applications like ruggedized edge AI modules, where data retention under fluctuating supply and thermal events is mission-critical. The interplay of thermal and electrical robustness enables higher sustained throughput without resorting to complex auxiliary cooling or voltage regulation, ultimately contributing to system simplicity and reduced BOM cost.
Altogether, the CY62177EV30LL-55ZXI demonstrates that meticulous pin-level engineering—extended across electrical and thermal domains—produces memory solutions that are not just theoretically robust, but actually resilient under practical, demanding conditions. This strategic convergence aligns with current trends prioritizing reliability, cost efficiency, and simplified system integration in next-generation industrial electronics.
Package and Pin Configuration for CY62177EV30LL-55ZXI SRAM
The CY62177EV30LL-55ZXI SRAM provides engineers with flexibility in physical deployment through its dual package options: 48-pin TSOP I and 48-ball FBGA. The TSOP I package, sized at 18.40 mm in width, accommodates standard PCB assembly processes, ensuring compatibility with established design workflows in legacy and new systems. Pin arrangement adheres to conventional architecture, segregating address, data I/O, control signals, and dedicated power lines. Diligence regarding the DNU (Do Not Use) pin is essential; PCB traces routed to this location must avoid electrical connectivity or signal assignment, as inadvertent use can induce unpredictable hardware states, impacting system reliability.
Memory organization for TSOP I packaging requires a specific handling of the BYTE pin. To switch operation to a 2M × 16 configuration, a direct connection of BYTE to Vcc disables byte access, transitioning the device to word mode. In this scenario, address lines select full words, and I/O pins I/O9 to I/O14, relevant only in byte-mode, remain unconnected. This floating approach prevents unwanted parasitic loading and signal contention, preserving signal integrity. In practice, careful schematic validation during prototype reviews often prevents costly board respins due to improper pin usage.
The FBGA format addresses high-density PCB designs by reducing footprint and increasing integration potential. While the ball-grid array is electrically analogous to TSOP I, attention must shift to thermo-mechanical factors and controlled impedance routing. Signal assignment on the FBGA’s matrix grid enhances high-speed performance by minimizing trace length and capacitance. This feature is advantageous in space-limited products, such as portable data acquisition systems or embedded IoT controllers, where stringent packaging constraints coexist with demanding memory bandwidth requirements.
Selecting between TSOP I and FBGA must be informed by target system requirements. TSOP I favours environments prioritizing ease of prototyping and limited board stacking, while FBGA addresses miniaturization and higher assembly throughput under surface-mount reflow processes. Calculated pin allocation—particularly around voltage supply planes and critical control signals—mitigates signal cross-talk and facilitates straightforward power sequencing, enhancing overall system performance.
Attention to subtle integration details, such as grounding unused I/O pins or optimizing trace impedance in high-frequency domains, yields tangible benefits in final product robustness. Migrating designs across package types benefits from modular schematic partitioning, laying groundwork for scalable platform evolution and maintenance. Effective deployment of the CY62177EV30LL-55ZXI depends on nuanced appreciation of package-specific pin configurations, coupled with fastidious layout discipline, resulting in optimized memory subsystem reliability and efficiency.
Performance Parameters and Timing Details of CY62177EV30LL-55ZXI
The CY62177EV30LL-55ZXI static RAM exemplifies high-speed parallel memory, with a read/write cycle time of merely 55 ns. This rapid cycle time forms the backbone for applications demanding low-latency buffering or deterministic data access. The design specifies address access time (tAA), chip enable access (tCE), and output enable access (tOE), each meticulously tuned to facilitate immediate response upon valid input conditions. These parameters ensure that synchronous memory transactions align precisely with modern microcontroller or FPGA bus pacing, eliminating data fetch bottlenecks in pipelined or tightly-coupled real-time systems.
Timing integrity extends to nuanced address setup and hold windows, managing the exact intervals for stable address lines before and after the activation edge. This constraint is reinforced by minimum read/write pulse widths, safeguarding reliable latching of data even under rapid-access cycles. Output data valid periods align with stringent synchronous interface specifications, allowing downstream logic to capture data without risk of metastability or bus contention.
A critical architectural feature involves the tri-state output drivers. By transitioning the I/O pins to a high-impedance state when not actively driving a value, the device enables seamless sharing of data buses by multiple memory resources. This architecture underpins multi-device designs where address decoding hardware selectively enables a single memory chip during a transaction, precluding electrical conflicts and allowing scalable system expansion.
In practical deployment, these timing characteristics facilitate direct interface with high-frequency controllers using minimal glue logic. Experience in system bring-up often demonstrates the importance of meticulously observing hold times and data valid windows; even minor violations can induce elusive timing faults or sporadic corruption. Robust designs typically include timing margin analysis and, where feasible, employ static timing verification tools to account for environmental or process variations.
The architecture’s efficiency is amplified in designs where deterministic throughput and consistent operation under varied load and temperature are paramount. Memory test patterns, such as walking ones and zeros at the periphery of the timing envelope, further reveal margins and confidence in real-world usage. Ultimately, the CY62177EV30LL-55ZXI’s parameter set does not merely enable speed but reliably sustains it, supporting complex embedded workflows—buffering sensor data, mediating between buses of differing speeds, or offloading compute logic—without introducing architectural fragility. This equilibrium of timing precision and interface flexibility underpins its adoption in robust, performance-driven engineering projects.
Data Retention and Power Management in CY62177EV30LL-55ZXI
Data retention and power management in the CY62177EV30LL-55ZXI are driven by advanced circuit-level optimizations that balance functionality with stringent energy requirements. At the heart of its architecture, the automatic power-down logic leverages state-dependent gating, ensuring peripheral blocks enter low-leakage states when neither chip enable nor byte enable signals are asserted. This dynamic gating mechanism allows the device’s quiescent current to decrease by orders of magnitude—up to 99%—without compromising address latching or data validity during idle periods. The effective standby current floor of 3 µA positions the CY62177EV30LL-55ZXI for deployment in portable platforms, sensor nodes, or remote measurement systems where battery longevity directly impacts usability.
Fundamental to its low-power operation, the SRAM integrates retention control circuitry that maintains cell state at diminished supply voltages (down to 1.5V VDR). Subthreshold operation within this retention mode permits stable data preservation even through extended intervals of minimal system activity. Internal recovery protocols guarantee rapid return to full performance following power restoration, minimizing latency for applications experiencing frequent sleep/wake cycles. System designers benefit from this predictable retention behavior, which enables aggressive power budgeting strategies and simplifies the design of firmware sleep-state transitions, given the absence of volatile refresh requirements.
Practical application often involves balancing retention time with supply stability, especially in distributed IoT environments subjected to supply fluctuations. The CY62177EV30LL-55ZXI’s low retention current and robust undervoltage tolerance facilitate uninterrupted operation in circuits powered by supercapacitors or coin cells—common in data loggers or telemetry modules. Seamless transitions between normal and retention modes are supported by internal reference tracking, reducing external components and firmware complexity. Integrated safeguards against inadvertent loss during brief brownout conditions further enhance operational robustness, supporting deployment in unpredictable field scenarios.
An inherent advantage is observed in systems targeting multi-year battery lifespans, where aggressive power management must coexist with rapid wake-up response and non-volatile storage reliability. By enabling firmware to anticipate power-down without explicit state guarding and supporting instant-on recovery, the CY62177EV30LL-55ZXI embodies a strategic convergence between hardware resilience and system-level efficiency. This pragmatic integration aligns with contemporary engineering practice, offering a low-risk pathway for optimizing both retention integrity and on-demand performance within energy-constrained domains.
Potential Equivalent/Replacement Models for CY62177EV30LL-55ZXI
Selecting viable replacements for the CY62177EV30LL-55ZXI demands a methodical assessment rooted in both electrical and functional equivalence. Central to this evaluation are core parameters—static RAM density, supply voltage (typically 2.7 V to 3.6 V for mainstream low-voltage SRAMs), access times (e.g., 55 ns in the reference device), and standby/active power metrics, each of which directly informs design compatibility within embedded memory subsystems. Beyond Infineon’s own CY62177EV30 product family, where speed bins, package options, and possible industrial temperature ratings can vary, careful scrutiny reveals nuanced distinctions influencing system integration. Package types, such as 48-pin TSOP versus 48-ball BGA, may enforce PCB layout adjustments or assembly constraints, especially when physical drop-in compatibility is essential.
Examining alternatives from suppliers like Renesas and Alliance Memory, the emphasis should be on asynchronous SRAMs supporting parallel bus architectures and matching word organization—for instance, 512K x 16 configurations. However, substitution extends beyond datasheet similarities; subtle differences in output drive, power-up timing, or impedance characteristics can become root causes for signal integrity deviations in practice. In field applications, direct swaps may expose timing edge violations, particularly in tightly budgeted address or data access windows. Therefore, focusing on access and cycle times—beyond the headline figure—warrants signal timing analysis using actual system clocking and bus loading conditions.
Pinout congruence represents another layer of practical importance. While many 48-pin SRAMs claim to be industry-standard, minor shifts in chip enable, output enable, or write enable polarity and function can necessitate schematic tweaks or firmware adjustments for glitch-free operation. Voltage margins, especially in designs leveraging coin cells or voltage supervisors, merit validation under worst-case battery sag scenarios. Even when nominal supply voltage matches, variations in allowable undershoot/overshoot or ESD tolerance can affect robust operation in noisy environments.
In practice, successful substitutions have demonstrated that integrating pre-production device samples into existing hardware platforms—leveraging functional regression tests and analog waveform capture—materially reduces risk. This approach quickly surfaces peripheral incompatibilities not evident in cross-reference tables. Moreover, leveraging manufacturer-provided simulation models (IBIS, SPICE) for signal and power integrity analysis, prior to volume deployment, streamlines the replacement process and contains engineering iteration overhead.
Driving selection beyond first-order fit, some strategies favor sourcing SRAMs with extended availability guarantees or multi-sourcing options, reducing future obsolescence risk. Incorporating a buffer in speed grades or specifying devices rated for wider temperature ranges supports long-term platform stability, especially crucial in automotive and industrial applications.
A rigorous, tiered evaluation aligns fundamental electrical parameters, pinout mappings, and peripheral compatibility, complemented by in-situ validation. This layered, engineering-focused selection process maximizes replacement success, ensuring lifecycle resilience and system reliability in the face of ongoing supply dynamics.
Application Considerations for CY62177EV30LL-55ZXI in Engineering Design
Application of the CY62177EV30LL-55ZXI in engineering design requires precise alignment between component features and system-level requirements. Its operational voltage span of 2.2V to 3.6V positions it as a drop-in solution for both traditional and current-generation logic, enabling seamless migration in multi-generation projects or mixed-voltage backplanes. This flexibility helps minimize redesign cycles during late-stage modifications, particularly in upgradable industrial automation layers.
Package selection directly impacts layout efficiency and assembly risk. The TSOP I variant offers larger pitch and easier manual rework, making it suitable for platforms prioritizing maintainability and rapid prototyping. Conversely, FBGA packaging reduces the device footprint, supporting aggressive form factor reductions in wearable, portable, and densely populated boards. Layer stacking in compact embedded systems substantially benefits from FBGA’s PCB space savings, often enabling the addition of auxiliary circuitry within the same board area.
The device’s configurable data bus merits deliberate interface selection. A 16-bit bus delivers doubled memory throughput compared to 8-bit operation, essential where wide data paths or burst transfers dominate, e.g., in high-frequency sensor aggregation or graphics frame buffering. At the same time, native 8-bit compatibility guarantees fast integration with legacy MCUs without glue logic, which streamlines design validation and reduces risk of timing violations on slower, legacy buses. Selection should account for system bandwidth ceilings and firmware architecture, as effective utilization depends on both hardware wiring and corresponding software routines.
Low power modes represent a critical advantage in battery-sensitive or always-on applications. The memory’s support for active, standby, and deep power-down states allows aggressive current optimization strategies, especially with dynamic firmware control. For example, coupling bus activity monitoring with adaptive power state transitions helps circumvent unnecessary energy drain during system idle times, a practice common in handheld diagnostic tools and wireless sensor nodes. Caution is warranted: improper recovery from power-saving states or incomplete refresh cycles can introduce data retention faults, so careful timing analysis and deliberate pin sequencing are essential.
Pin configuration contributes directly to module stability and system EMC behavior. Diligent handling of unused and DNU (Do Not Use) pins minimizes susceptibility to floating node risks and radiated noise coupling, practices often codified into board layout checklists. The BYTE pin’s correct setup underpins proper bus width selection at both hardware and boot stages. Neglect in this area can manifest as subtle data mapping errors or bootlock phenomena, particularly in self-test or code shadowing scenarios.
Advanced engineering teams leverage these characteristics not merely as checklist items but as nodes of optimization. For example, some integrate real-time power monitoring with logic that dynamically adjusts memory standby timing, balancing responsiveness and energy efficiency more finely than static timing tables. Others might exploit the device’s voltage tolerance to simplify inventory, standardizing on a single SRAM part across different platforms, thereby reducing qualification workload and spare part counts.
Strategic deployment of the CY62177EV30LL-55ZXI ultimately hinges on extracting advantage from its versatile interface and power economy while respecting layout and electrical nuances. Treating bus width, packaging, voltage, and firmware policies as interdependent design vectors unlocks the component’s full potential in modern engineering workflows, optimizing for longevity, performance, and cost.
Conclusion
Infineon’s CY62177EV30LL-55ZXI offers a well-balanced SRAM solution engineered for the nuanced demands of modern embedded systems. At the silicon level, its advanced low-power CMOS fabrication achieves static currents as low as 2 µA, reducing standby drain without sacrificing operational throughput—a critical attribute for battery-powered platforms and distributed sensing nodes. The consistent 55 ns access time supports real-time data processing pipelines, allowing for deterministic handling of latency-sensitive workloads. Its robust operating voltage range of 2.2 V to 3.6 V ensures seamless function across fluctuating power conditions, while the extended industrial temperature specification (-40°C to +85°C) enables deployment in challenging field environments.
Interface compatibility is a key factor in system integration. The device features standard asynchronous SRAM pinout and supports byte-wide I/O, enabling straightforward migration from legacy memory circuits and accelerating design cycles for derivative products. This versatility is particularly valuable in scenarios where last-time-buy and second-source strategies are essential for risk mitigation. Additionally, the device’s compliance with JEDEC standards simplifies qualification processes, promoting interoperability throughout the supply chain.
Thermal and electrical stability underpin reliable performance during both development and sustained field operation. In industrial automation applications, for instance, the CY62177EV30LL-55ZXI tolerates extended duty cycles without retention drift or bit-flip artifacts, even under aggressive switching patterns typical of motor control, sensor aggregation, and gateway applications. This resilience reduces diagnostic complexity and the need for firmware-level error correction.
Expansion and parallelism are further supported through the part’s address and chip enable logic, lending itself to scalable memory architectures. This enables practical memory banking techniques, such as splitting high-throughput data domains or structuring failover partitions without complex custom logic. It ensures sustained bandwidth availability in edge devices that aggregate multiple sensor modalities or serve as local caches in fog computing topologies.
Procurement decisions also benefit from predictable supply continuity and long product lifecycle policies. The CY62177EV30LL-55ZXI’s design aligns with strategic embedded memory replacement roadmaps, offering drop-in usability for both new projects and ongoing support of legacy systems approaching end-of-life. In this way, its adoption streamlines revision control and risk management directly at the bill of materials level.
Forward-looking engineering teams recognize the cumulative impact of SRAM memory innovation across the embedded system lifecycle. The CY62177EV30LL-55ZXI exemplifies the convergence of low power, robust design margins, and broad interoperability, equipping system architects to meet evolving requirements with reduced design overhead and deployment risk. Its integration into critical applications consistently demonstrates the practical benefits of selecting memory solutions with both electrical precision and supply longevity engineered into their core architecture.
