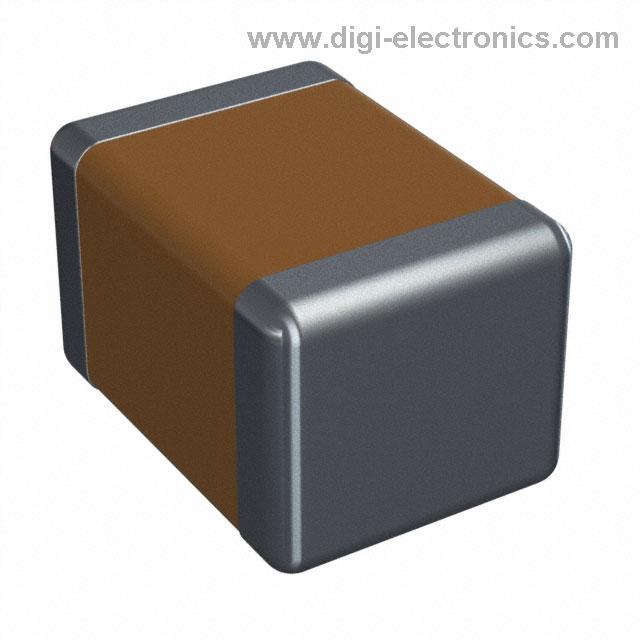

Product Overview: LD12YC105KAB2A KYOCERA AVX Capacitor
The LD12YC105KAB2A presents a robust multilayer ceramic capacitor solution tailored for environments prioritizing reliability under varying operational stresses. Utilizing the X7R dielectric formulation, the device maintains stable capacitance over a temperature range of -55°C to +125°C, making it suitable for circuits exposed to thermally dynamic conditions. The 1 μF nominal capacitance with ±10% tolerance addresses decoupling, bulk storage, and noise filtering in analog and digital circuitry, where predictable response under voltage and frequency fluctuations is critical.
Structurally, the 1812 case (4.5 x 3.2 mm metric) ensures compatibility with high-density PCB layouts, balancing small footprint and adequate voltage withstand. The Sn/Pb (tin/lead) termination, denoted by the "B" designator, represents a deliberate engineering decision; it leverages the demonstrated resilience of leaded solder joints against thermal cycling, vibration, and tin whisker formation. This makes the LD12YC105KAB2A particularly valuable in legacy manufacturing lines and mission-critical military or aerospace systems, where Pb-free solder may introduce reliability questions or fail existing qualification protocols. The secure wetting behavior during reflow soldering further reduces the potential for brittle joints, micro-cracking, and early-life failures—a significant consideration in applications governed by rigorous lifecycle expectations.
Despite non-compliance with RoHS directives, the capacitor fulfills a persistent niche in markets where exemption criteria apply or where equipment recertification is infeasible. In such scenarios, requalification of alternative RoHS-compliant MLCCs often reveals subtle performance gaps: increased susceptibility to tin whiskers, compatibility issues with existing reflow curves, or variance in solder joint mechanical strength, especially after accelerated aging tests. The LD12YC105KAB2A bypasses these barriers, streamlining integration into established assemblies.
In practical deployment, this capacitor excels in power supply bypass, clock buffering, and EMI suppression circuits within avionic modules, radar systems, and industrial controls, where failure mitigation is paramount. The predictability of X7R dielectric characteristics also facilitates low-risk derating strategies, supporting robust design margins especially in low- to mid-voltage rails. Empirical data from rework cycles and field repair scenarios underscore that MLCCs with Sn/Pb terminations often maintain solder joint integrity even after multiple reflows, unlike certain Pb-free variants prone to grain boundary weaknesses.
From a design perspective, the device's consistent electrical performance in conjunction with legacy solderability translates to reliable system behavior, reduced NFF (no-fault-found) rates, and minimization of board-level latent defects. These factors become critical in equipment with long service lifetimes or requirements for backwards compatibility.
As electronic assemblies bridge the gap between evolving standards and entrenched fielded systems, components such as the LD12YC105KAB2A offer an optimal intersection of electrical stability, process compatibility, and proven reliability, addressing the nuanced demands of sectors unwilling to compromise on quality or risk.
Structural and Material Features of LD12YC105KAB2A
The LD12YC105KAB2A multilayer ceramic capacitor leverages advanced multilayer ceramic fabrication, achieving a highly repeatable dielectric and electrode stacking density. This architecture ensures robust electrical performance, particularly under transient loads and varying environmental conditions common to demanding circuit designs. Core to its stable behavior is the X7R dielectric, which features a predictable temperature coefficient and minimal voltage dependence, allowing capacitance values to remain within tolerance across a broad operating spectrum—essential for timing, filtering, and decoupling tasks in precision-driven electronics.
The device’s packaging in the standardized 1812 SMT form factor extends assembly flexibility and high throughput during solder reflow or wave soldering processes. Designers benefit from reduced board space consumption and streamlined integration into automated manufacturing lines, minimizing the risk of human-induced variance during placement or rework.
Electrochemical termination engineering plays a critical role in long-term reliability. The tin/lead solderable ends, specified at a minimum of 5% lead, directly address interconnect integrity and reliability requirements. The lead present in the termination alloy acts as a mitigating agent against tin whisker formation—a failure mode known to compromise mission-critical systems through crystalline growths that cause unintended shorts. This consideration is especially relevant in applications where field repairs and replacement cycles occur, as the Sn/Pb interface tolerates multiple thermal cycles and mechanical stresses without significant degradation or loss of solderability.
In assembly environments adhering to legacy specifications, especially within aerospace, defense, or specialized industrial verticals, Sn/Pb terminations maintain backward compatibility for high-reliability joints. The termination’s mechanical profile, including optimal wetting angles and surface tension characteristics, contributes to strong metallurgical bonds and reduced susceptibility to solder joint fatigue under conditions like vibration, shock, or thermal expansion mismatch.
From a practical standpoint, these ceramic capacitors demonstrate consistent electrical and mechanical performance when subjected to burn-in testing, thermal cycling, and board-level reliability assessments. Their dielectric layering protects against dielectric breakdown and aging phenomena that might otherwise lead to capacitance drift or parametric shift, ensuring predictable system behavior over operational lifetimes.
The interplay of material engineering and packaging strategy in the LD12YC105KAB2A supports flexible deployment in both legacy and modern system architectures. This integration of classical Sn/Pb termination chemistry with modern multilayer ceramic techniques yields a component profile that not only satisfies stringent reliability specifications but also enables seamless transition strategies for mixed-technology or upgradable platforms. The holistic synergy between dielectric stability, termination reliability, and standardized packaging exemplifies an evolutionary approach to electronic component design, where incremental improvements directly reinforce system-level robustness and maintainability.
Electrical Characteristics and Performance of LD12YC105KAB2A
The KYOCERA AVX LD12YC105KAB2A is specified by its 1 μF nominal capacitance and 16 V rated voltage, positioning it as a versatile MLCC for energy buffering, noise suppression, and transient voltage mitigation along both signal and power paths. The adoption of X7R ceramic dielectric is foundational, endowing the device with a stable temperature characteristic—the capacitance shifts by no more than ±15% from –55 °C to +125 °C—satisfying most general-purpose and industrial temperature exposure profiles. This temperature predictability is critical when designing multi-environment platforms, ensuring that frequency and impedance targets are upheld without regular recalibration.
Tight tolerance, exemplified by the ±10% rating, optimizes component selection. This level of control streamlines both inventory management and analog/digital circuit repeatability, sidestepping the overengineering typical with looser grades. Deploying this model across large projects reveals a consistent corner-case margin, minimizing issues related to production batch variance or rapid prototyping component mismatches.
The choice of X7R dielectric, while inherently conceding some precision to C0G (NP0) grades, unlocks advantages in capacitance-per-volume. This trade-off is particularly beneficial under board space and height constraints, where high-density capacitance is required for decoupling multi-rail power supplies and attenuating broadband noise sources on dense PCBs. For instance, in precision A/D interfaces, this facilitates compact bypassing solutions that tolerate moderate variability without sacrificing overall system integrity.
In RF and mixed-signal environments, the LD12YC105KAB2A serves reliably for voltage smoothing and transient absorption near power pins and supply planes. Although X7R dielectrics exhibit nonzero DC bias and aging effects, the moderate shifts encountered with 16 V/1 μF configurations remain within engineering control via derating and circuit margining strategies. Circuit layout experiences demonstrate that careful footprint placement and trace impedance management further augment these capacitors’ effectiveness in high-speed, low-noise applications.
Recognizing the interplay between capacitance density, temperature stability, and tolerance reveals an actionable design insight: the LD12YC105KAB2A embodies a calculated equilibrium suited for mission-critical yet space-limited assemblies. Leveraging this device as a default for multi-purpose decoupling not only simplifies part libraries but also standardizes performance and procurement, a subtle yet decisive advantage in long-cycle manufacturing programs.
Termination and Reliability Attributes in LD12YC105KAB2A
Termination engineering directly impacts component reliability in multilayer ceramic capacitors, particularly in application environments subject to high reliability demands. The LD12YC105KAB2A utilizes a tin/lead termination system, coded with the industry-standard “B,” ensuring at least 5% lead content. This metallurgical composition purposefully addresses and suppresses the spontaneous growth of tin whiskers—a known root cause for unintended electrical shorts in long-life electronics. The inclusion of lead in termination thus acts as a fundamental barrier against these failure mechanisms, making it pivotal for deployment where lifecycle risks cannot be compromised or field replacement is infeasible.
In aerospace, defense, and specialized automation contexts, leaded terminations provide a proven path to meeting mission assurance levels that RoHS-compliant alternatives may not satisfy. Here, solder joint reliability is not just a manufacturing “nice-to-have” but a system requirement, as critical infrastructure and flight-grade electronics must resist thermal cycling, vibration, and extended dwell times. The material stack-up enables robust soldering across both wave and reflow profiles tailored to Sn/Pb assembly, ensuring mechanical stability and high-yield solder fillets. In practice, design margins can be maintained even under severe operational loads or revised IPC standards for critical interconnections. Observations in quality assurance cycles frequently reveal that Sn/Pb terminations maintain excellent wetting and avoid micro-cracking at joints, leading to a measurable reduction in latent field failures.
Testing protocol for the LD12YC105KAB2A reflects the emphasis on reliability beyond standard commercial acceptance. Each production lot undergoes stringent screening for insulation resistance and dielectric withstanding voltage, with specific attention paid to termination adhesion strength. These metrics are tied closely to component survivability under both initial board mounting and prolonged operational stresses. By engineering the termination interface with both material selection and process controls, the risk of early-life attrition and in-circuit shorts is minimized, satisfying oversight for military QPL and similar frameworks. Subtle variations in the lead-tin ratio and termination metallurgy can influence adherence and microstructural integrity, making process control as significant as the base material choice.
System integrators working in high-reliability markets often leverage such components to mitigate against unpredictable board-level phenomena, including intermittent open circuits and catastrophic failures induced by environmental factors. Consistent, predictable performance under qualification regimens—temperature-humidity-bias stress, high-frequency switching, and thermal shock—underpins end-to-end circuit reliability, reducing the likelihood of unscheduled maintenance or mission aborts. Industry experience underscores that tailored termination selection, as exemplified by the LD12YC105KAB2A's B-code system, directly translates to decreased risk profiles in operational electronics. The application of these capacitors in safety-of-life systems thus becomes not simply a matter of regulation, but a strategic design choice—optimizing for both regulatory exceptions and superior long-term system robustness.
Standards Compliance and Environmental Considerations for LD12YC105KAB2A
The LD12YC105KAB2A presents a nuanced profile concerning regulatory compliance and environmental design parameters. Its explicitly non-RoHS-compliant status stems from the inclusion of leaded terminations, a legacy approach preserved for sectors where RoHS exemptions are applicable or enforced less stringently. These exemptions, typically found in aerospace, defense, and certain medical applications, prioritize reliability and performance under extreme operating conditions over strict adherence to environmental directives. In these environments, the use of leaded solder has demonstrated superior resistance to tin whisker growth and thermal fatigue, critical factors where long-term system integrity is non-negotiable.
Engineering teams must engage in a detailed standards mapping exercise, as the product is not universally suitable for general-purpose electronics, especially those designed for consumer markets or under jurisdictions mandating lead-free manufacturing. The LD12YC105KAB2A, however, supports its target applications with adherence to military specifications, specifically qualifying under MIL-C-55681 for multilayer ceramic chip capacitors. This qualification requires rigorous electrical, mechanical, and environmental stress testing, ensuring statistically predictable performance curves even at the edge of operating windows. Such depth of qualification instills confidence in deployments where component failure can cascade into critical system-level malfunctions.
Navigating the documentation ecosystem, the product literature emphasizes a thorough examination of all operating limitations and legal disclaimers. This protocol aligns with best practices in the selection pipeline for components destined for mission-critical, safety-centric assemblies. Field experience suggests that early, transparent communication of such constraints enables design teams to architect redundancy and fault-tolerant configurations, preempting latent risks from single-point compliance oversights.
Strategically, the decision to sustain leaded technology in LD12YC105KAB2A offers designers a stable option in supply chains facing cyclical obsolescence of legacy-compliant alternatives. Furthermore, for long-lifecycle platforms—where redesign and recertification carry prohibitive costs—the assurance of continued availability and standardized qualification becomes a core selection driver. From a risk engineering perspective, understanding both the explicit compliance boundaries and the implicit reliability trade-offs embedded in this component’s design can inform system-level mitigation strategies, optimize maintenance intervals, and extend operational lifespans.
In summary, LD12YC105KAB2A exemplifies a component engineered for function-first applications, harmonizing industry quality benchmarks with the pragmatic realities of specialized, exemption-driven environments. The critical insight for practitioners lies in the systematic evaluation of compliance matrices against project mandates, using the robust pedigree of this series to balance regulatory, operational, and lifecycle constraints in system architecture.
Application Suitability and Engineering Considerations with LD12YC105KAB2A
Application suitability for the KYOCERA AVX LD12YC105KAB2A hinges on legacy assembly requirements and high-reliability domains. The presence of tin/lead (Sn/Pb) terminations aligns with processes standardized in aerospace, defense, and select industrial sectors—environments where RoHS exemptions permit or necessitate non-lead-free assemblies due to concerns over tin whisker growth or extended thermal/mechanical cycling. In these scenarios, the LD12YC105KAB2A mitigates risks related to solder joint integrity, facilitating robust connections during initial assembly and subsequent maintenance, crucial for long-lifecycle products.
On the material side, the X7R dielectric imbues the part with stable capacitance across broad temperature ranges and moderate voltage levels, typically seen in signal conditioning and noise suppression adjacent to power distribution networks. The 1812 form factor yields high volumetric efficiency, permitting dense placement near FPGAs, ASICs, or high-pin-count MCUs, and supports compact PCB layouts while simplifying trace routing for low-impedance decoupling networks. The physical footprint and termination style also influence reflow and manual rework compatibility; operators should ensure thermal profiles and solder pastes suit Sn/Pb systems to prevent wetting defects or damage to ceramic bodies.
Electrical reliability pivots on key rating parameters. The device’s 1μF capacitance at standard voltage rails (100V class) ensures sufficient charge reservoir for rapid current delivery and voltage damping, especially in circuits sensitive to transient phenomena. The leaded terminations, often preferred for hand soldering or socketed modules, offer mechanical resilience in vibration-prone enclosures or subassemblies subject to rework. Careful attention to these attributes contributes to a lower probability of failure in harsh deployments.
Documentation and compliance factor into final engineering diligence. While many modern designs trend toward lead-free, regulatory allowances, such as military standards or medical equipment directives, may explicitly reference Sn/Pb compatibility. Engineers benefit from referencing design history and process control documentation, affirming that chosen components integrate seamlessly with inspection regimes—such as X-ray evaluation for solder integrity or in-circuit test points for capacitance verification.
System integration experience demonstrates a marked reduction in field failure rates when using legacy-compatible Sn/Pb components for mission-critical circuits, particularly in hardware refresh cycles or multi-decade support models. Leveraging the reliability advantages inherent in such mature termination systems often justifies their specification over newer but less-proven lead-free alternatives in risk-sensitive sectors. Advancing component selection further involves balancing electrical performance, physical placement, and lifecycle support, yielding robust outcomes for demanding operational contexts.
Potential Equivalent/Replacement Models for LD12YC105KAB2A
When identifying suitable replacements for the LD12YC105KAB2A multilayer ceramic capacitor (MLCC), a methodical approach is required to ensure both electrical compatibility and long-term reliability within mission-critical assemblies. Primary selection criteria begin with form factor: the SMT 1812 size establishes an immediate mechanical envelope that influences PCB pad layout, automated placement routines, and available board real estate. Matching this footprint mitigates the need for layout modifications and reduces risk during assembly transitions.
Focusing on electrical parameters, a capacitance of 1 μF and a minimum voltage rating of 16 V must be tightly adhered to, given that undervoltage operation can precipitate catastrophic failure modes while even modest undercapacitance may destabilize power rails or analog filter nodes. The specification of an X7R dielectric ensures predictable capacitance retention across a broad temperature regime, a non-negotiable requirement in systems subject to environmental extremes or thermal cycling. Notably, X7R class also balances volumetric efficiency with acceptable ESR and ESL characteristics, which directly impact EMI filtering and decoupling performance.
The termination system—specifically the tin/lead (Sn/Pb) composition with at least 5% Pb—is often dictated by legacy soldering processes and stringent military, aerospace, or high-reliability industrial standards. Replacements must match this metallurgy, as insufficient lead content can trigger tin whisker formation or inhibit wetting during reflow, particularly in high-humidity or vibration-prone settings. Many procurement failures stem from neglecting this nuance, so thorough cross-verification with manufacturer datasheets is essential. It is also prudent to reference QPL approvals, DSCC part numbers, or accompanying MIL-PRF-55681/123 designations when considering alternatives, as these attest to rigorous process controls and traceability—key attributes where documentation is as critical as performance.
If the operating context allows for a phase-in of lead-free, RoHS-compliant products, the sourcing universe expands to include KYOCERA AVX’s broader portfolio and those of major vendors such as Murata, TDK, or Samsung. However, such migration must be engineered with care: extensive process validation and requalification cycles should confirm solder joint integrity, especially where legacy processes have not been fully modernized, and be cognizant of subtle shifts in heat cycling or board-level reliability profiles. Fine attention to detail in the transition from Sn/Pb to pure tin or alternative finishes often reveals latent process sensitivities—such as altered reflow profiles, wetting balance, and thermal stress responses—that require design-of-experiment approaches to mitigate.
Beyond first-order matching, leveraging longstanding distributor and OEM relationships can expedite sample evaluation and supply chain alignment, especially given market volatility and allocation events common with high-value MLCC grades. In application, cross-referencing part numbers using multi-parameter database searches, coupled with direct communication with manufacturer engineering support, often uncovers near-exact substitutes that may not be visible through standard web selectors. Periodic review of vendor PCNs and EOL notifications is also integral in maintaining supply continuity for high-reliability platforms.
Thus, securing an LD12YC105KAB2A equivalent requires granular attention to material and process fidelity, backed by an iterative qualification strategy and supply chain intelligence. Proactive component management, coupled with robust verification, is central to sustaining both system performance and compliance over the product lifecycle.
Conclusion
The KYOCERA AVX LD12YC105KAB2A represents a purposeful intersection of legacy compatibility and contemporary electronic performance. Rooted in its X7R dielectric composition, the part achieves a stable capacitance profile across voltage and temperature ranges, critical for high-reliability circuit domains where voltage fluctuations and thermal cycling are expected. This stability is further enhanced by its high-capacitance density, supporting compact designs and enabling efficient bulk energy storage or decoupling within restricted PCB footprints.
The integration of a tin/lead (Sn/Pb) termination addresses specific manufacturing scenarios, particularly wave and reflow soldering within mature assembly lines. Tin/lead alloys mitigate whisker formation and solder joint brittleness, a factor that remains vital in mission-critical equipment and high-vibration installations. These terminations also foster repeatable process outcomes in environments where mixed rework or remanufacture cycles occur, thus directly impacting long-term reliability.
Adherence to the Surface-Mount Technology (SMT) form factor facilitates widespread deployment, maximizing board density while maintaining standardized pick-and-place operation. Coupled with the capacitor’s form, fit, and function alignment to established footprints, the LD12YC105KAB2A streamlines design-in and drop-in replacement strategies, affording engineers flexibility when requalifying legacy builds or executing phased upgrades. The nuanced interplay between the material system and terminal metallurgy allows precision tailoring in analog front ends, switching converters, and EMI filters—demonstrating its utility not only as a passive component but as a cornerstone in system-level robustness.
Practical deployment often reveals the necessity of understanding solder process windows and board-level aging; slight shifts in reflow profiles or flux characteristics become magnified when legacy finishes interact with new processes. In production environments where mixed RoHS/non-RoHS inventory exists, the LD12YC105KAB2A’s process adaptability streamlines risk mitigation. For instance, power modules servicing industrial controls benefit from the predictable ESR and dependable solderability, minimizing unexpected downtime or field failure rates.
Selection of this capacitor—or crafting substitution criteria—requires more than checking datasheet parameters. Evaluation must extend to process compatibility, discrete circuit modeling, and life cycle sustainment. Consideration of applicable standards, especially those governing reflow profiles, lead content, and residual halide tolerance, ensures that system-level compliance is uninterrupted amidst evolving regulatory frameworks. Design teams leveraging the LD12YC105KAB2A should engage nuanced risk and supply assessments, recognizing its role in balancing operational continuity with process legacy—a dynamic that increasingly defines modern sustainment engineering.
