Open and short circuits are two important fault conditions that directly affect how electrical systems operate. One stops current completely, while the other allows uncontrolled current flow that can cause serious damage.

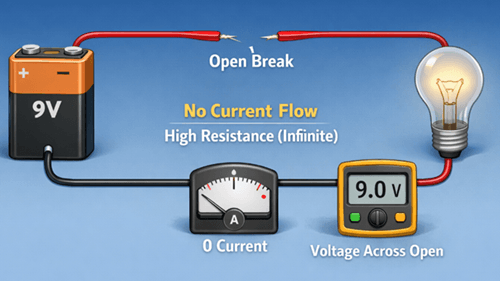

What Is an Open Circuit
An open circuit occurs when the electrical path is broken, so no current flows. Resistance becomes extremely high (effectively infinite), causing the current to drop to zero. Voltage may still appear across the open points, which can lead to misleading test readings.

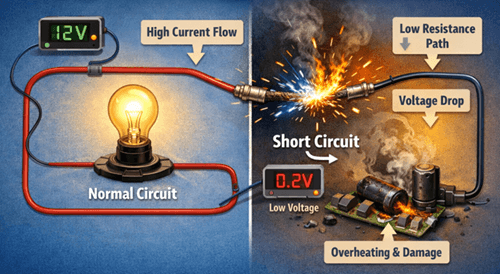

What Is a Short Circuit
A short circuit occurs when an unintended low-resistance path forms. This allows excessive current to flow beyond safe limits. As a result, the voltage across the shorted points drops sharply, and components may become unstable or damaged.
Causes, Symptoms, and Behavior
Open Circuit
| **Common Causes** | **Typical Symptoms** | **System Behavior** |
|---|---|---|
| Broken wires that interrupt the electrical path | No current flow | Complete loss of function in the affected path |
| Loose connections that prevent stable contact | Stops operation | Voltage redistributes across other parts of the circuit |
| Open switches that intentionally or unintentionally stop current flow | Voltage present across the open section | Current drops to zero in the open section |
| Cracked PCB traces that break continuity on the board | Intermittent operation | Reduced reliability over time |
| Failed components that no longer conduct properly | Circuit failure in the affected section | Open path prevents energy transfer |

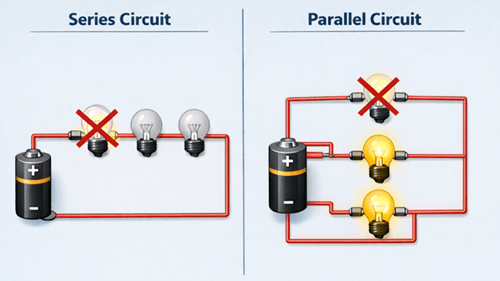

Behavior in Circuit Types
• Series circuits: One open stops the entire circuit
• Parallel circuits: Only the affected branch stops; others continue operating
Short Circuit
| Common Causes | Typical Symptoms | Impact and Risks |
|---|---|---|
| Damaged insulation that allows conductors to contact each other | Current surge | Rapid heat buildup |
| Wires touching due to wear, movement, or poor installation | Overheating | Risk of insulation damage or fire |
| PCB solder bridges are creating an unintended low-resistance path | Blown fuses or tripped protection | Fast component and trace damage |
| Dust or moisture contamination that supports unwanted current flow | Sparks, smoke, or a burning smell | Increased risk of short paths and failure |
| Internal battery or component faults that connect unintended points | Battery swelling or shutdown | Serious safety hazards and possible failure |

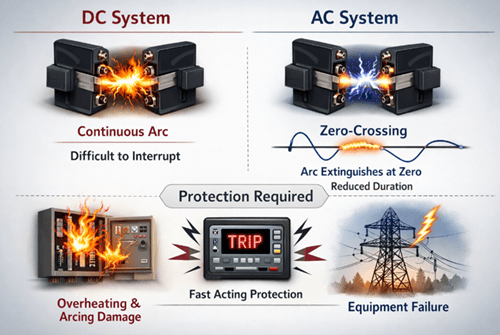

Behavior in AC and DC Systems
• DC systems: Continuous current sustains arcs, making them harder to interrupt
• AC systems: Zero-crossing reduces arc duration, but damage can still occur
Open Circuit vs Short Circuit
| Aspect | Open Circuit | Short Circuit |
|---|---|---|
| Definition | Broken path; no current | Unintended low-resistance path |
| Resistance | Extremely high (≈ ∞) | Extremely low (≈ 0) |
| Current | Zero | Excessively high |
| Voltage | Present across open points | Drops across shortened points |
| Causes | Loose wires, open switch, broken trace | Insulation failure, wire contact, solder bridge |
| Damage Level | Low; operation stops | High, overheating, and failure |
| Safety Risk | Low | High |
| Examples | Open switch, disconnected cable | Shorted terminals, touching wires |

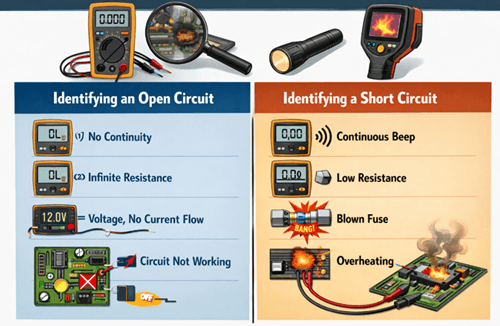

Diagnosis Methods
Tools Required
• Multimeter – Used to check continuity, resistance, and voltage at different points in the circuit. It is the main tool for confirming whether the path is open or unintentionally connected.
• Visual inspection tools – Useful for finding loose wires, damaged insulation, cracked traces, corrosion, or burned components that may indicate the fault location.
• Thermal tools – Help detect overheating areas that may not be easy to see directly, especially in short-circuit conditions where excess current produces rapid heat buildup.
Identifying an Open Circuit
An open circuit means the electrical path is broken, interrupted, or disconnected, so current cannot flow normally. In testing, it usually appears as no continuity and very high or infinite resistance across the suspected section. In some cases, voltage may still be present at one side of the circuit, but the load will not operate because the current path is incomplete.
Identifying a Short Circuit
A short circuit means there is an unintended low-resistance path between points that should not be directly connected. It is usually identified by unexpected continuity, resistance close to zero, or a continuous beep during testing. In actual circuits, short faults may also trigger fuses or protection devices and can cause rapid heat buildup in wires, traces, or nearby components.
Prevention and Safety Practices
| Preventing Short Circuits | Preventing Open Circuits | Improving Reliability |
|---|---|---|
| Use fuses or circuit breakers to limit excessive current | Use vibration-resistant connectors for stable contact | Add redundant paths for dangerous systems |
| Ensure proper insulation and cable routing | Maintain good solder quality | Protect against moisture and dust |
| Add strain relief to prevent cable damage | Perform regular inspections | Use conformal coating on PCBs |
| Maintain proper PCB spacing | Avoid excessive bending or stress on wires | Follow proper installation practices |
| Keep wiring clean and dry | Replace worn or damaged components early | Improve maintenance procedures |
Differences in Applications
| Application Area | Open Circuit | Short Circuit |
|---|---|---|
| Consumer Electronics | Stops operation due to broken connections | Causes overheating or shutdown; protection circuits activate |
| Power Distribution Systems | Interrupts power flow in part of the system | Produces high fault current; breakers and relays isolate faults quickly |
| Automotive Systems | Causes signal loss and incorrect readings | Triggers fuse protection; may complicate diagnostics due to multiple systems |
| Battery and Energy Storage Systems | Prevents energy delivery despite stored charge | Causes rapid heating; may lead to thermal runaway or failure |
| Industrial and Manufacturing Equipment | Halts operation due to loss of power or control signals | Causes shutdown, overheating, and potential equipment damage |
Conclusion
Open and short circuits differ significantly in behavior, risk, and system impact. An open circuit stops current flow and interrupts operation, posing relatively low immediate danger, whereas a short circuit creates excessive current, leading to heat, damage, and serious safety risks. Accurate identification, proper protection, and preventive design practices are needed to reduce failures, minimize downtime, and ensure long-term safety and reliability in electrical and electronic systems.
Frequently Asked Questions [FAQ]
How do you fix an open circuit in an electrical system?
Restore the broken path by reconnecting wires, repairing traces, or replacing faulty components. Continuity testing confirms the fix.
What happens if a short circuit is not repaired quickly?
It can cause overheating, insulation damage, component failure, or fire. High fault current may also damage upstream equipment.
Can a circuit have both an open circuit and a short circuit at the same time?
Yes. Different parts of a system can experience different faults simultaneously, making diagnosis more complex.
Which is easier to detect: an open circuit or a short circuit?
Short circuits are easier to detect due to visible signs like heat or blown fuses. Open circuits often show only loss of function.
How do protection devices respond to open vs short circuits?
Protection devices mainly respond to short circuits by interrupting excessive current. Open circuits typically do not trigger protection since the current is already stopped.
