Dynamic Random Access Memory (DRAM) is a core part of modern computing, providing fast, temporary data storage for systems ranging from smartphones to data centers. Its practical balance of cost, capacity, and performance makes it the standard main memory in many devices. Understanding how DRAM works, how its types are organized, and where its limits lie helps explain how modern systems maintain speed, efficiency, and responsiveness.
What Is DRAM?

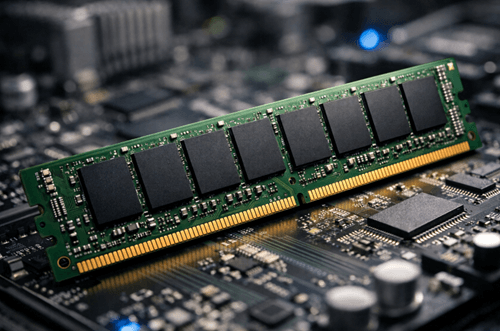

Dynamic Random Access Memory (DRAM) is a type of volatile semiconductor memory used to temporarily store data and instructions that a computer is actively processing. It is called “dynamic” because it must be continuously refreshed to retain stored data. Due to its simple structure and low cost per bit, DRAM is the standard main memory used in modern computing systems.

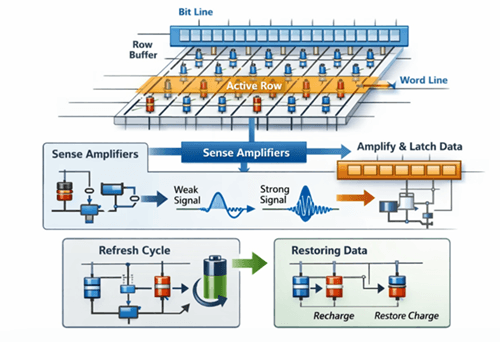

How DRAM Works
DRAM stores data in memory cells, each consisting of one capacitor and one transistor. The capacitor holds a small electrical charge to represent a bit (0 or 1), while the transistor controls access to that charge.
Cells are organized in a grid of rows and columns. To access data, the memory controller activates a row (word line), causing all cells in that row to transfer their charges to the corresponding bit lines. This data is then latched into a row buffer, enabling faster access to multiple columns within the same row.
During a read operation, a sense amplifier detects the very small charge from each capacitor and amplifies it into a stable signal. Because this process drains the original charge, the read is destructive, so the data must be immediately restored after sensing.
Since capacitors naturally leak charge over time, DRAM requires periodic refresh cycles to maintain data integrity. These operations run in the background and affect both performance and power consumption.
DRAM Performance
Performance Factors
DRAM performance depends on how efficiently it can read and write data. Key factors include:
• Clock Speed – The number of cycles per second at which memory operates
• Data Transfer Rate – DDR technology transfers data on both clock edges, increasing throughput
• Latency – The delay between a request and when data becomes available
• Refresh Overhead – Background refresh operations can briefly pause memory access
How DDR Generations Improved DRAM Performance
Modern DRAM performance has improved through successive DDR generations. DDR2, DDR3, DDR4, and DDR5 provide higher bandwidth, better efficiency, and improved overall performance compared to earlier versions. These advancements support demanding workloads such as multitasking, gaming, and large-scale data processing.
Types of DRAM

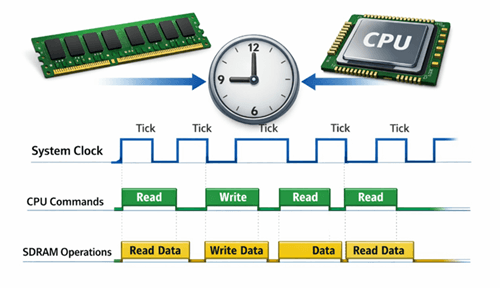

• SDRAM (Synchronous DRAM) – SDRAM operates in sync with the system clock, allowing memory operations to follow a predictable timing pattern. This improves coordination between memory and the processor compared to older asynchronous DRAM types.

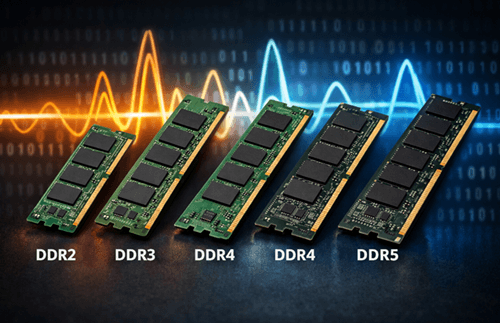

• DDR SDRAM (Double Data Rate SDRAM) – DDR SDRAM is the main modern form of SDRAM. It increases throughput by transferring data on both the rising and falling edges of each clock cycle. Major generations include DDR2, DDR3, DDR4, and DDR5, with each generation improving speed, efficiency, and capacity.
• LPDDR (Low Power Double Data Rate) – LPDDR is a low-power version of DDR memory designed for portable devices. It is widely used in smartphones, tablets, and ultrabooks where energy efficiency, reduced heat, and longer battery life are important.
• GDDR (Graphics Double Data Rate) – GDDR is a specialized high-bandwidth form of DDR memory designed for graphics processing. It is mainly used in GPUs and other processors that handle graphics, rendering, and AI workloads.

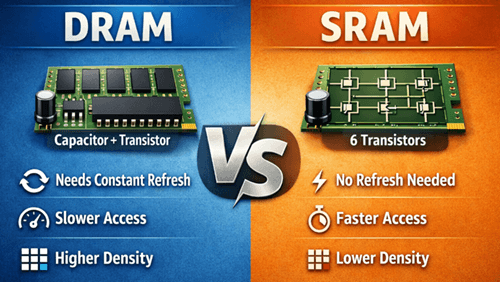

DRAM vs. SRAM
| Feature | DRAM (Dynamic RAM) | SRAM (Static RAM) |
|---|---|---|
| Cell Structure | 1 transistor + 1 capacitor | Multiple transistors (typically 6 per cell) |
| Data Storage Method | Stores data as an electrical charge in a capacitor | Stores data using stable flip-flop circuits |
| Refresh Requirement | Requires continuous refreshing to maintain data | No refresh required |
| Speed | Slower due to refresh cycles and simpler design | Faster access with low latency |
| Density | High density (more memory per chip) | Lower density |
| Cost per Bit | Lower cost | Higher cost |
| Power Consumption | Lower per bit, but includes refresh overhead | Higher due to continuous transistor activity |
| Typical Use Case | Main system memory (RAM in computers, smartphones) | CPU cache (L1, L2, L3), high-speed buffers |
| Performance Role | Balances capacity and cost | Optimized for speed and quick data access |
| Volatility | Volatile (data lost when power is off) | Volatile (data lost when power is off) |

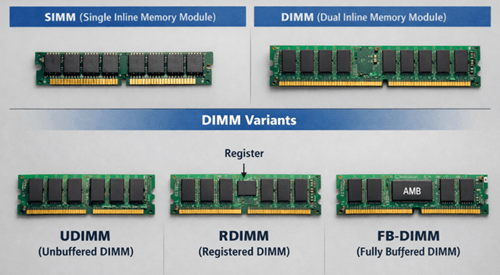

DRAM Packaging and Module Types
Module Types (Form Factors)
• SIMM (Single Inline Memory Module): Older memory format with a single set of electrical contacts; now obsolete
• DIMM (Dual Inline Memory Module): Modern standard with separate electrical contacts on both sides, enabling higher bandwidth and performance
DIMM Variants (Functional Types)
• UDIMM (Unbuffered DIMM): UDIMM is commonly used in desktops and laptops because it connects directly to the memory controller without additional buffering. This direct connection allows lower latency and faster response times, making it suitable for everyday computing tasks. It is also more affordable compared to other DIMM types, which makes it a practical choice for consumer systems where extreme capacity and advanced error handling are not required.
• RDIMM (Registered DIMM): RDIMM includes a register that sits between the memory modules and the memory controller, helping stabilize electrical signals. This design reduces the electrical load on the system, allowing it to support more memory modules and larger total capacity. Because of its improved reliability and scalability, RDIMM is widely used in servers and workstations where consistent performance and system stability are critical.
• FB-DIMM (Fully Buffered DIMM): FB-DIMM uses an advanced memory buffer to manage communication between the memory controller and the memory modules, improving signal integrity in systems with many modules. This makes it suitable for high-capacity configurations. However, the added buffering introduces higher latency and increased power consumption compared to other DIMM types. Due to these drawbacks and the development of more efficient alternatives, FB-DIMM is now less commonly used in modern systems.
DRAM vs. Storage
| Feature | DRAM | SSD/HDD |
|---|---|---|
| Main Function | Temporarily stores data and instructions currently in use | Permanently stores files, applications, and the operating system |
| Speed | Very fast | Slower than DRAM; SSD is faster than HDD |
| Volatility | Volatile; data is lost when power is off | Non-volatile; data remains stored without power |
| Capacity | Lower capacity | Much larger capacity |
| Cost per Bit | Higher | Lower |
| Role in a System | Supports active processing and system responsiveness | Stores long-term data and software |
| How It Works with the CPU | CPU accesses DRAM directly for fast performance | Data must be loaded from storage into DRAM before the CPU uses it |
| Power-Off Behavior | Unsaved data is lost | Data remains saved |
| Best Use | Fast access for running tasks | Long-term storage of files and programs |
Applications of DRAM
• Personal Computers – Serves as the main system memory for running applications, multitasking, and operating systems
• Servers and Data Centers – Supports high-performance workloads such as virtualization, databases, and cloud computing
• Mobile Devices – LPDDR enables efficient memory usage in smartphones and tablets while minimizing power consumption
• Graphics Systems – GDDR provides high bandwidth for GPUs in gaming, video rendering, and AI processing
• Embedded Systems – Used in automotive, industrial, and IoT devices for real-time data processing
• High-Performance Computing (HPC) – Enables fast data access for scientific simulations and large-scale computations
Conclusion
DRAM remains essential in modern computing because it provides the fast-working memory needed for active processing. Although it is volatile and requires refresh operations, it continues to offer an effective balance of capacity, speed, and cost. As computing demands grow, DRAM will continue evolving to deliver higher bandwidth, better efficiency, and greater capacity across a wide range of systems.
Frequently Asked Questions [FAQ]
How much DRAM do I really need for everyday use, gaming, or professional work?
For basic tasks (browsing, office apps), 8GB is typically sufficient. Gaming and multitasking benefit from 16GB, while content creation, virtualization, and data-heavy workloads often require 32GB or more. The right amount depends on how many applications run simultaneously and their memory demands.
Does upgrading DRAM improve overall system performance?
Yes, but mainly when your system is memory-limited. Adding more DRAM reduces reliance on slower storage (paging), improving responsiveness. However, if you already have enough memory, gains may be minimal unless you also upgrade speed or optimize configuration.
What happens if DRAM speed doesn’t match the motherboard or CPU?
The system will usually default to the lowest supported speed among components. This ensures stability but may reduce performance. In some cases, incorrect configurations can cause boot issues, requiring manual adjustment in BIOS/UEFI settings.
Can DRAM affect power consumption and battery life in laptops?
Yes. Higher-capacity or faster DRAM can increase power usage, but modern types like LPDDR are optimized for efficiency. Systems balance performance and energy use through memory management and low-power states to extend battery life.
Is it safe to mix different DRAM brands, sizes, or speeds in one system?
It can work, but it’s not ideal. Mixed modules may run at reduced speed or disable dual-channel performance. For best stability and efficiency, use matched modules with the same specifications (capacity, speed, and timings).
